The F series BMWs brought a huge upgrade to the iDrive system, with many features still feeling very modern. However Android Auto was never added to this system, and you car may not have Apple CarPlay either.

With the Mr12Volt box this problem is solved, bringing the car up-to-date with full functionality of both systems. This means you can have your phone connected for music, podcasts, navigation and also phone calls. All whilst being able to operate it using the original iDrive controller.

By utilising the MOST Bus there is no loss in audio quality, and the built in DSP means you can tweak the audio settings to get the most out of your speakers.

The full functionality of the original iDrive system is retained along with the original iDrive display.

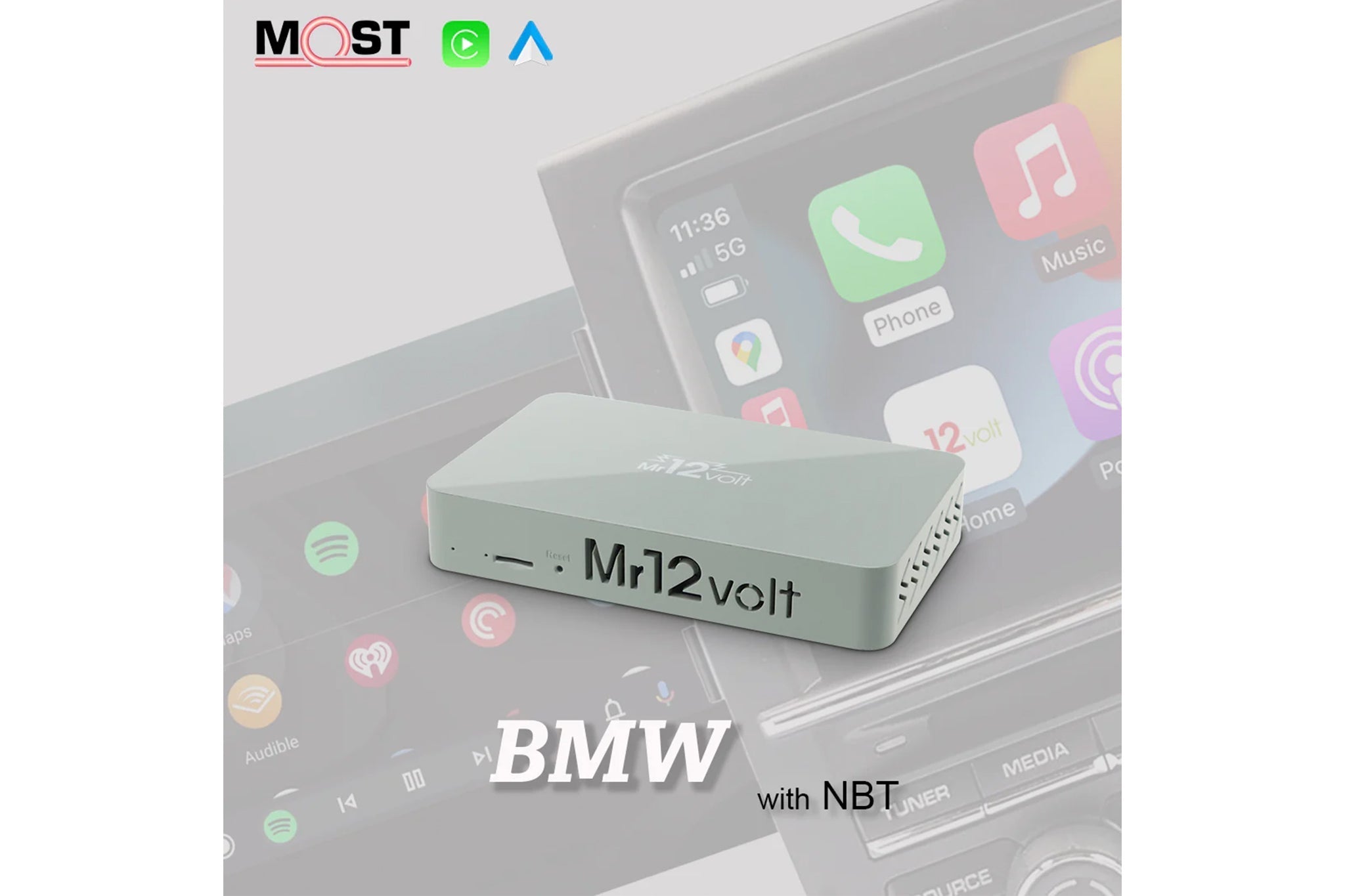

MOST Bus CarPlay & Android Auto Interface

Model No: P2000-NBTMM
The brand new Mr12Volt P2000 MM series has just gotten better now with a built-in highly customisable 15 bar DSP equaliser!

Compatible for BMW Radio with NBT, NBT ID4 (8.8"/10.25")

• 1 Series - F20/F21
• 2 Series - F22/F23/F87
• 3 Series - F30/F31/F34/F80
• 4 Series - F32/F33/F36/F82
• 5 Series - F10/F11/F07
• 6 Series - F12/F13/F06
• 7 Series - F01/F02
• X3 - F25
• X4 - F26
• X5 - F15/F85
• X6 - F16/F86

*** TV feature must be Enabled in order to use this product

Please check Compatibility criteria

Highlight Features

• Runs on MOST BUS with High-End sound quality
• Wireless & Wired Apple CarPlay, Google Android Auto
• Supports OEM microphone
• Wireless MirrorLink
• Bluetooth Hands free & Audio Streaming
• USB Video & Music Playback
• Reverse/Front/Left/Right camera Input

• Supports Apple Lossless music streaming
• Highly Customizable 15 bar DSP Equalizer

How it Works

• Mr12volt is selected through TV feature of NBT, if a factory TV module is installed, it must be bypassed in order to use the P2000MM
• Supports aftermarket cameras up to AHD720
• Supports the integration of OEM microphone (a Mic splitter is included in the box)

P2000 supported multimedia type (High performance video and audio codec)

• Decoding H.264 (Baseline and Main High Profile, Level 1-4.2)  30fps @1080p
• Decoding VC-1 (Simple Main Profile, low, medium and high levels. Advanced Profile, levels 0-3) 30fps @1080p
• Decoding MPEG1/2/4 (Simple Profile, levels 0-6. Main Profile, low, medium andhigh levels. ASP, levels 0-5) 30fps @1080p
• Decoding Real-Video 8/9/10 30fps @1080p
• Decoding VP6/7/8 (VP6.0/1/2, VP7 version 0-3, VP8 version 2(WebM)) 30fps @1080p
• Decoding DivX (DivX3/4/5/6) 30fps @1080p
• Decoding H.263 (Profile 0, levels 10-70.) 30fps @720x576
• JPEG codec (Baseline interleaved) 8176x8176
• Support *.mkv, *.mp4, *.avi, *.wmv, *.rmvb, *.rm, *.mpg, *.mpeg, *.ts, *.dat, *.asf, *.flv, *.vob, and so on file format
• Multi Format Audio CODEC (MP3, WMA, AAC, AC3, DTS, OGG, FLAC, APE, AMR, and so on)
