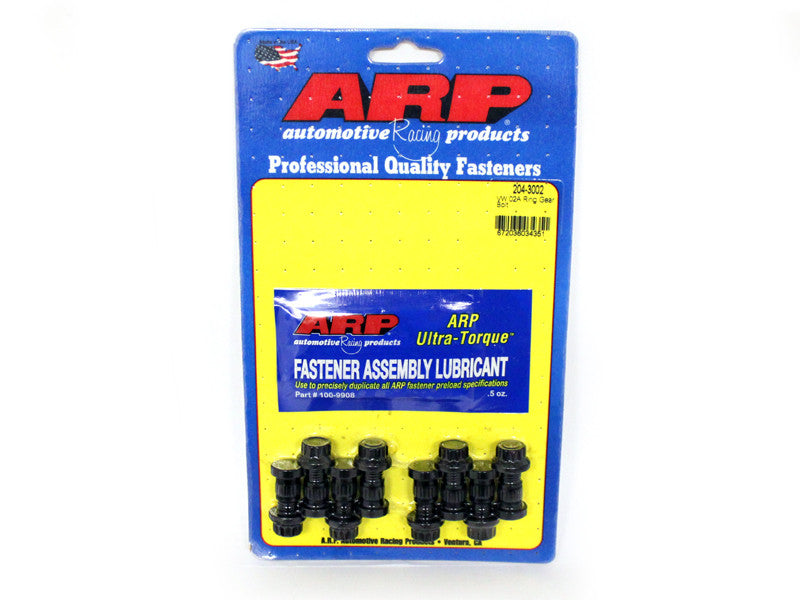

ARP 02A / 02J / 02J-B / 02S / 02R Differential Bolt Kit / Ring Gear Bolts

Uprated ARP Differential / LSD Bolt Kit

These Uprated ARP LSD bolts can be used for the Stock Diff and most Uprated LSD such as the Peloquin / Quaife

These bolts are only to be used with the 02A / 02J 5 Speed Gearbox, as well as the 02R, 02J-B and 02S Gearboxes

The 02R 5 Speed Gearbox is found in the Seat Ibiza Mk4 and Polo GTi Models

The 02J-B (5 Speed) & 02S (6 Speed) Gearbox is found in the Mk5 Golf Platform vehicles such as the VW Jetta, Audi A3, Seat Leon and Skoda Octavia 1.9 TDi

These ARP Bolts will only fit the 11.1mm crown wheel for the 02J / 02A / 02S / 02R

Please note that some 02S / 02R Gearboxes have a 12.1mm Crown Wheel and these CANNOT be used for those models

• 8x ARP LSD bolts
• 1x Assembly Lubricant
• The 12-point nuts rated at 180,000 psi or better

The threads on these bolts are heat treated and then rolled for the best quality threads to ensure more accurate torques without binding

ARP Part Number:

204-3002 / 204 3002 / 2043002

VW Part Number:

02A498088A / 02A498088 A / 02A 498 088 A
