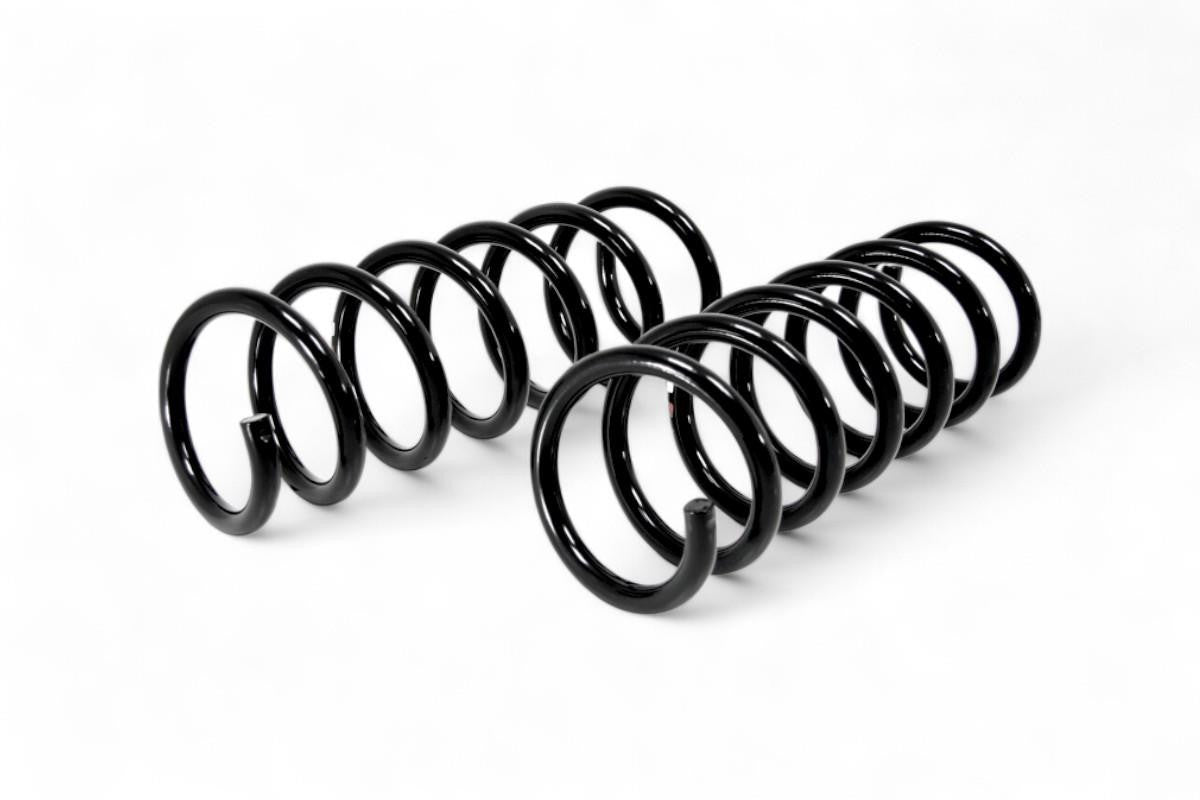

VW Touareg 7P Uprated Rear Coil Suspension Springs

VW Touareg 7P Uprated Rear Coil Suspension Springs

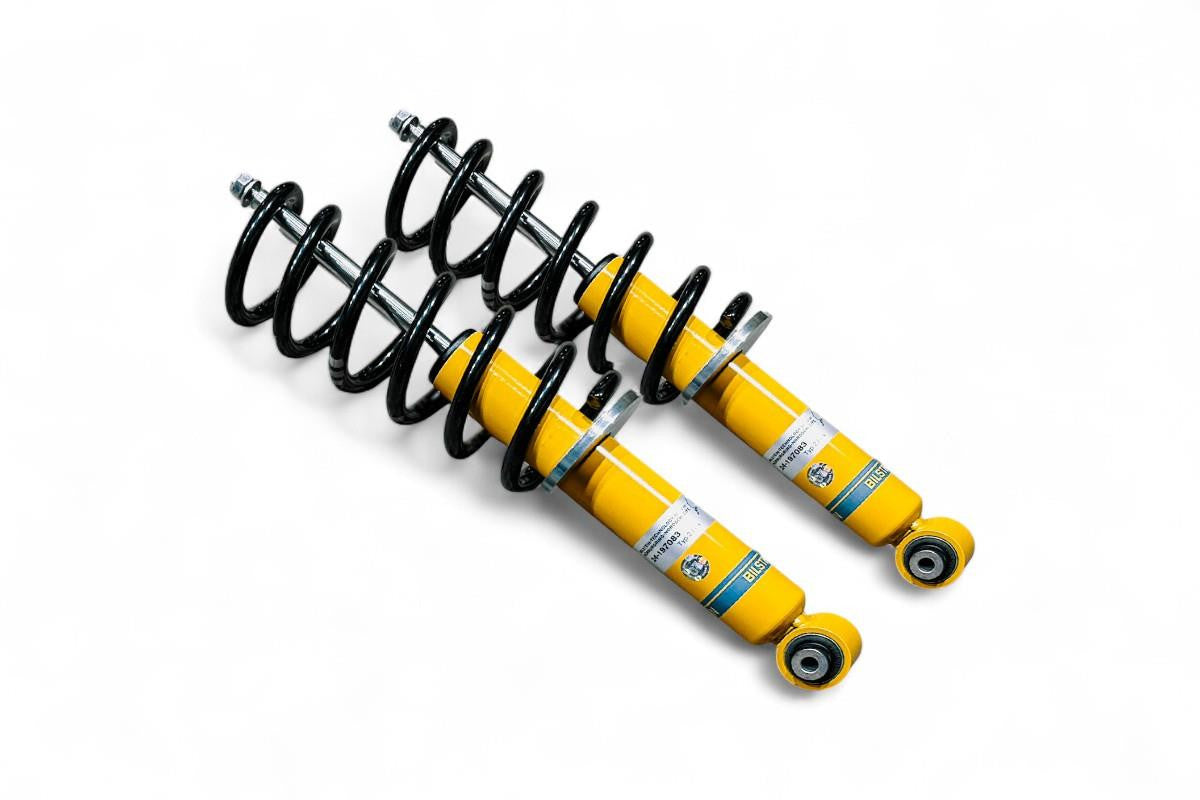

Uprated Rear Coil Suspension Springs for VW Touareg 7P Models These reinforced springs are an ideal upgrade when carrying more weight in the rear or for towing, we have found from our projects that the standard Touareg 7P rear springs are not quite cut out for the job. Usually the maximum weight rating on the rear springs for the VW Touareg 7P is 1160-1215kg, these uprated springs are rated to 1300-1331kg and make a huge difference especially on vehicles fitted with lift spacers. Although not necessary it would be recommended to swap the shock absorbers when carrying out this upgrade, we have Bilstein B4 OE or B6 Upgraded replacements available to select from the options above.

Increased rear axle weight rating

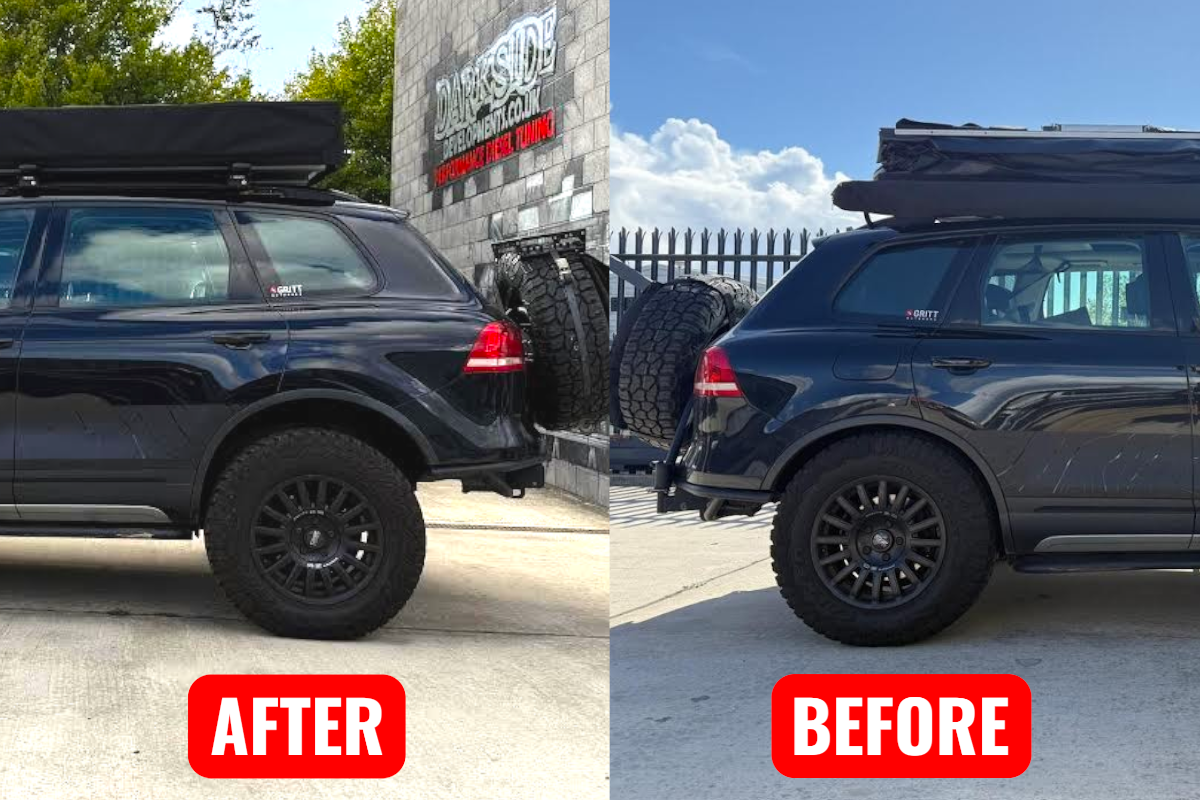

More lift when fitted with spacers

Volkswagen Touareg 7P Spring Ratings:

1BA: Suspension/dampers, standard
1BB: Suspension/shock absorbtion for heavy duty-version
1BE: Steel spring suspension (PASM) -20mm
1BW: Comfort suspension/damping (steel springs)
0YA: Weight class 1, rear axle - 1039-1074 kg
0YB: Weight class 2, rear axle - 1075-1128 kg
0YC: Weight class 3, rear axle - 1129-1159 kg
0YD: Weight class 4, rear axle - 1160-1215 kg

Uprated Springs: rear axle - 1300-1331kg

We have our 2" Coil Suspension Lift Kit listed here:

https://www.darksidedevelopments.co.uk/products/darkside-vw-touareg-7p-cayenne-958-2-coil-suspension-lift-kit.html

This Kit will fit the following Vehicles:

Volkswagen Touareg 7P View Full Description Hide Full Description
