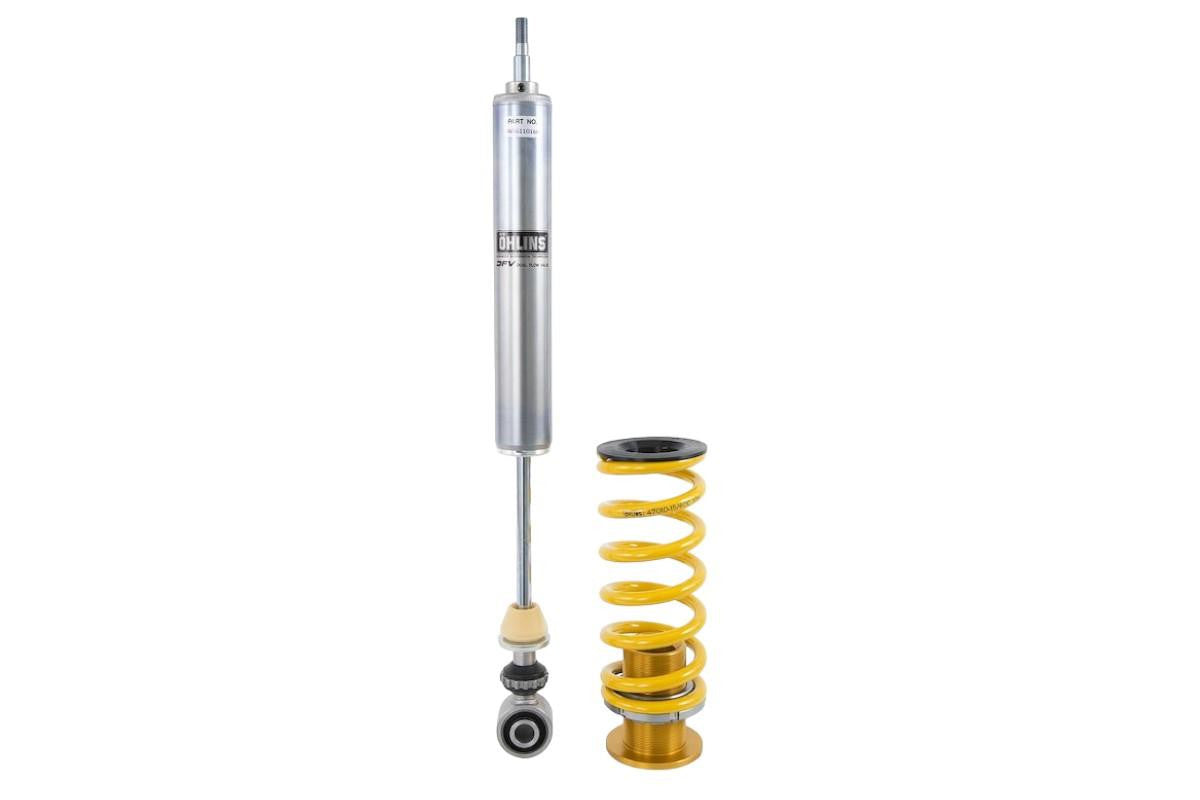

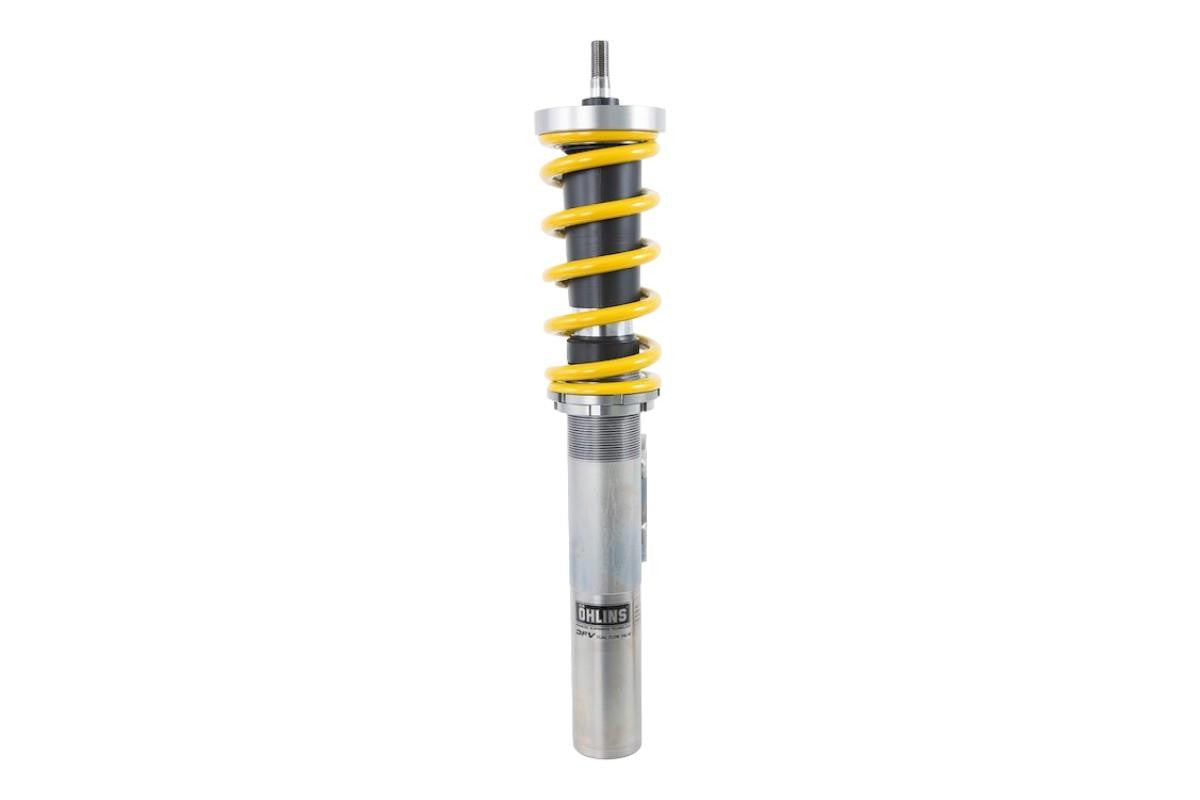

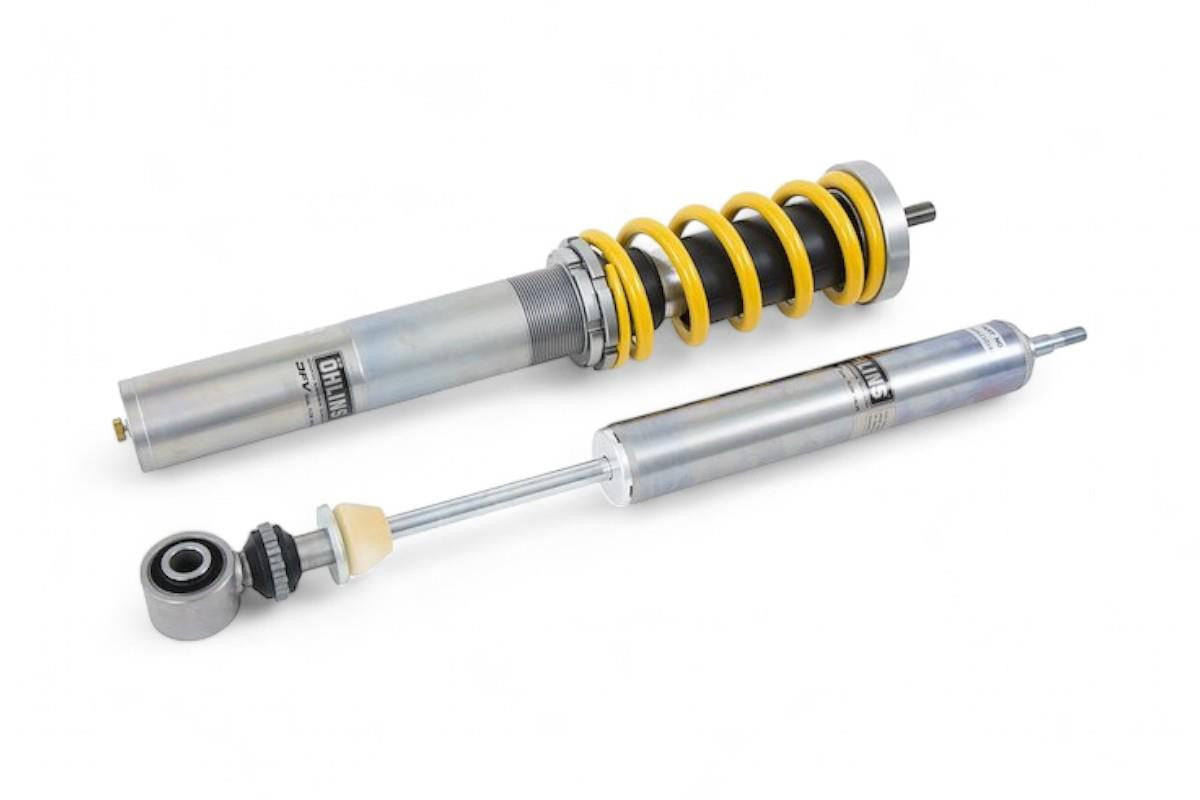

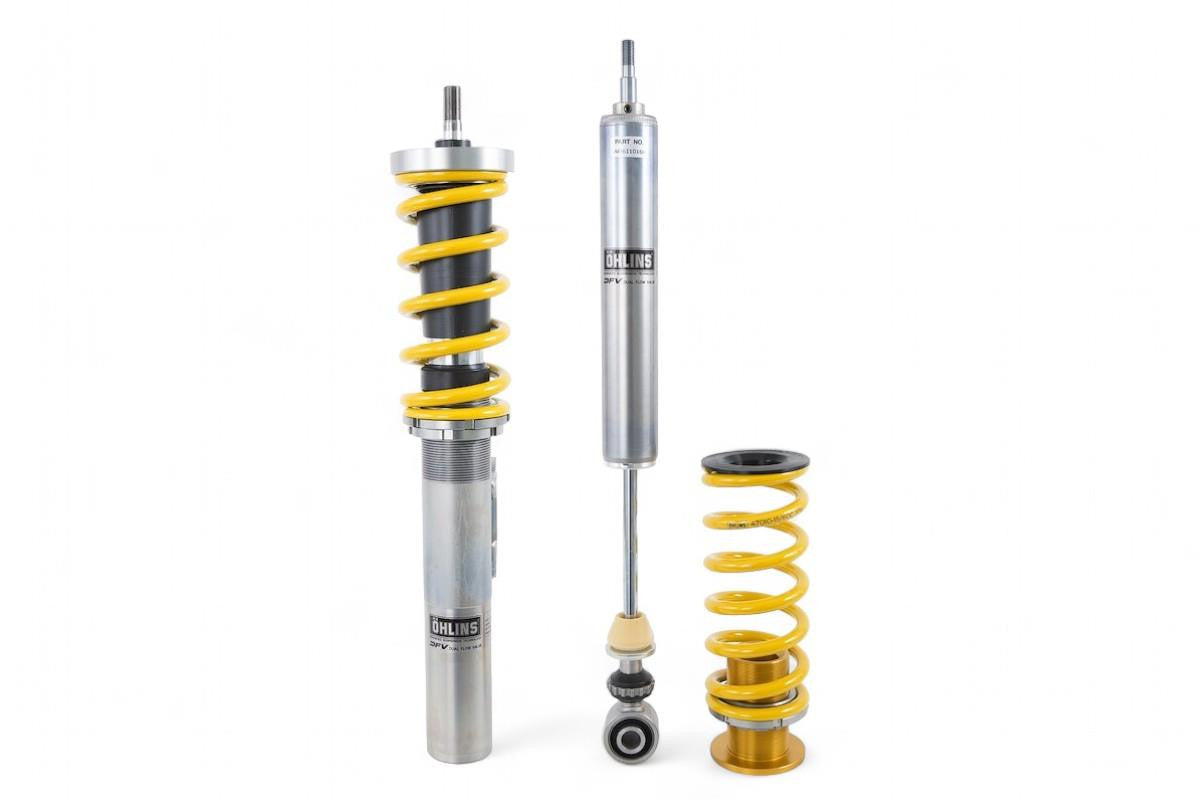

Ohlins Road and Track Coilover Kit for VAG Mk5 / Mk6 AWD Platform Vehicles

Ohlins Road and Track Coilover Kit for VAG Mk5 / Mk6 AWD and Estate Platform This is a complete Ohlins Road and Track Coilover Kit for VAG Mk5 / Mk6 Platform Estate and AWD Vehicles, this kit is supplied with coil springs. Please note that Top Mounts are not inlcuded with this kit. Ohlins recommends using OE top mounts, camber adjustable top mounts can also be used. Adjustments can be made to the Ohlins Coilovers to suit your ride such as height adjustment, damper adjustment and spring preload. This means you can fine tune your vehicle to your prefered settings.

DFV technology (Dual Flow Valve)

Individual height adjustment

Rebuildable

Corrosion salt spray tested (ISO 9227)

TUV Approved

2 year warranty

Ohlins Road and Track Series:

Experience the pinnacle of performance without compromising comfort in your daily driving. The Öhlins Road & Track range offers exceptional traction and control on track days while retaining a refined ride quality for road use. The Road & Track products are a versatile option for drivers who want it all, equally as popular among manufacturers making the ultimate track day car as they are with aftermarket customers aiming to further upgrade chassis performance.

Coil Spring Specifications:

Front Spring: Approx. 20mm drop with recommended settings / Spring Rate: 70N/mm
Rear Spring: Approx. 20mm drop with recommended settings / Spring Rate: 80N/mm

DFV - Dual Valve Technology:

Only Öhlins Suspension has DFV technology on its road and track products. With DFV, the dual flow valve gives the same characteristics on rebound as it does on compression, thanks to the damper fluid having a consistent path of flow in both ­directions. This means that the wheel and tyre can quickly and effectively resume their important position back on the ground, providing grip and traction. The new Öhlins R&T range uses DFV technology on every single fitment, making it the perfect upgrade for the enthusiast that needs comfort and agility in the one unit.

This Kit will fit the following Vehicles:

Audi RS3 (8P), 2011 – 2012

Audi S3 (8P), 2006 – 2012

Audi TT (8J), 2006 – 2014

Seat Toledo (5P) 4WD, 2004 – 2009

Skoda Octavia, Octavia RS 4WD + Kombi/Estate (1Z), 2005 – 2013

Volkswagen Golf V R (1K), 2003 – 2008

Volkswagen Golf VI R (5K), 2008 – 2012

Ohlins Part Number:

VWS MT10S2
