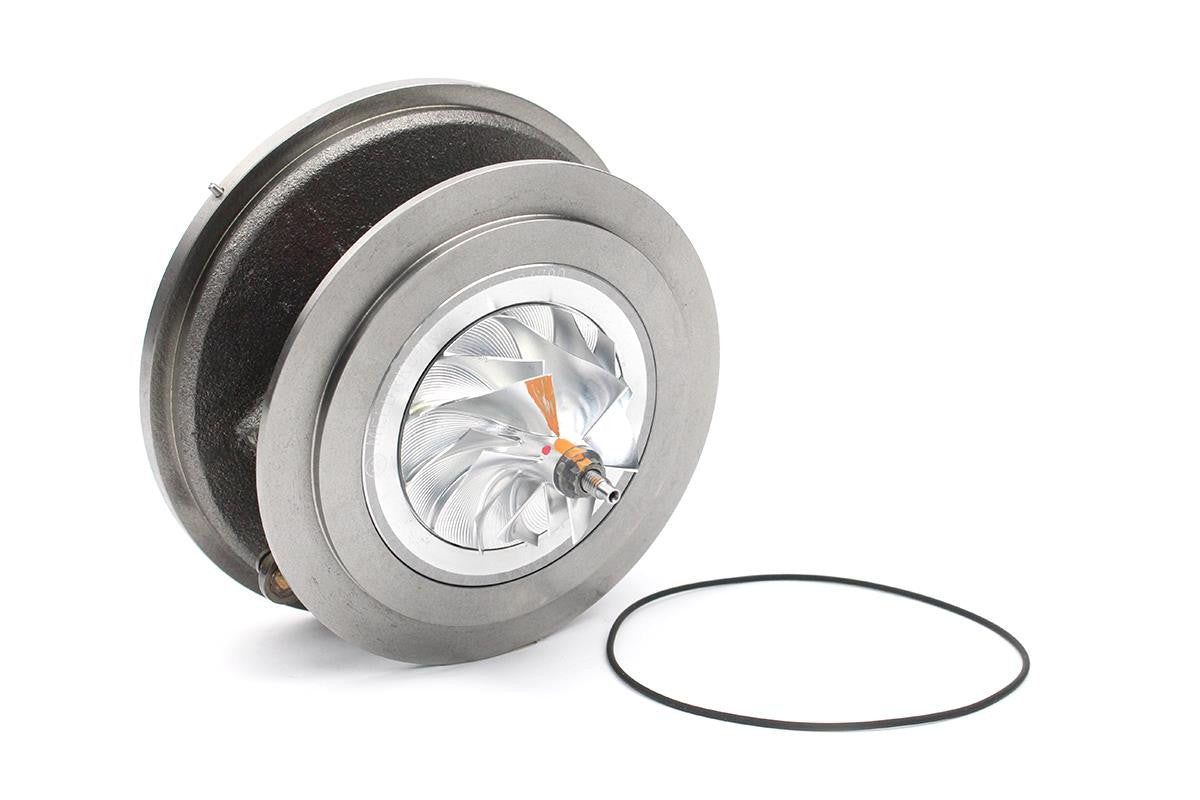

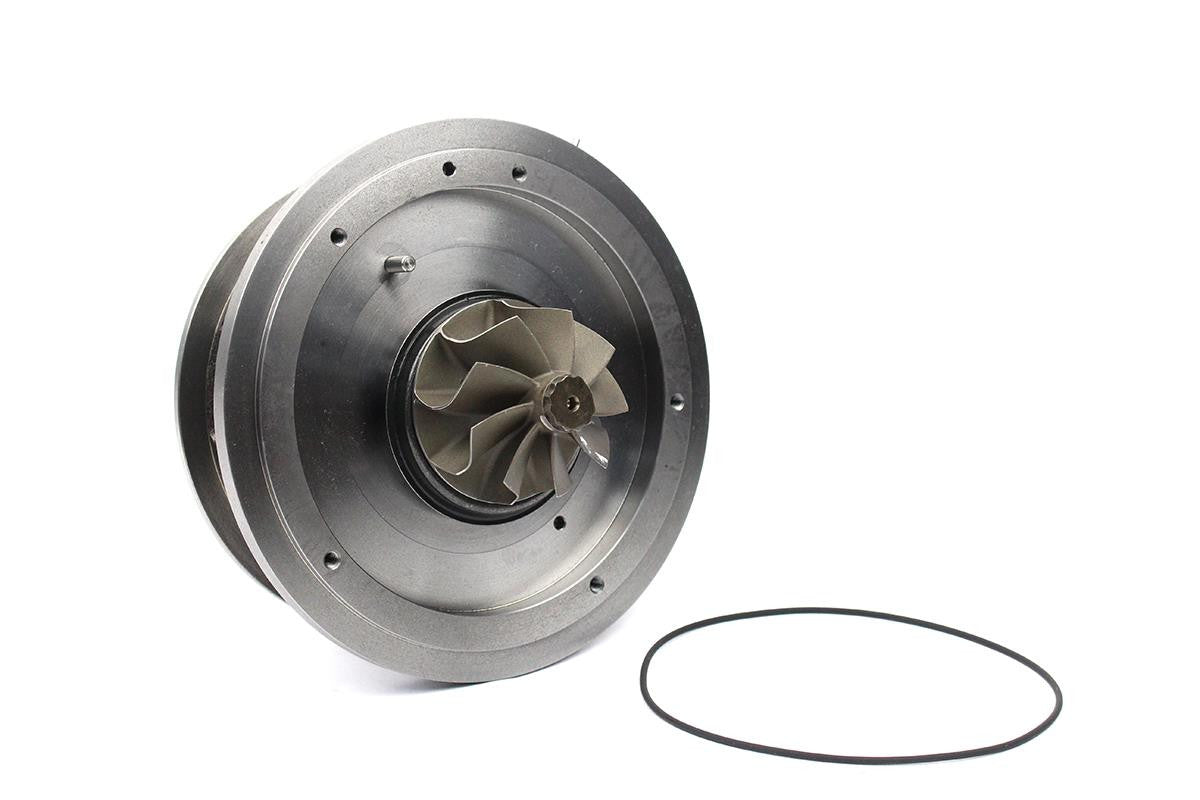

GTB2260VK CHRA (Centre Housing Rotating Assembly) with MFS Billet Core

GTB2260VK CHRA (Centre Housing Rotating Assembly) with MFS Billet Core

Replacement GTB2260VK Turbocharger CHRA (Centre Housing Rotating Assembly) with MFS Billet Core This CHRA assembly is ready to be installed into your GTB2260VK Compressor and Exhaust Housings Also includes the Compressor Cover sealing ring

Standard Balance - (0.65G - 0 - 90,000rpm / 2.00G - 90,000 - 132,000rpm)
Enhanced Balance - (0.65G - 0 - 90,000rpm / 1.00G - 90,000 - 132,000rpm)

Assembled and balanced in the UK with an upgraded Billet Compressor Wheel to the highest standard using only quality parts

Ideal for turbocharger rebuild

Upgraded Billet MFS Wheel

Balanced assembly ready to install

Upgraded Total Seal Piston Rings in Turbine Side

PLEASE NOTE:

The VNT Lever is for the OEM Electronic Actuator - This will need to be converted for a Vacuum Actuator when you receive it if you are fitting in another application.
Your other turbo components MUST be in good condition and cleaned thoroughly.

We can also supply the following parts for a rebuild:

Nozzle Ring Cage

Nozzle Ring Assembly

VNT Nozzle Ring Bolts

Steel Turbine Housing Gasket

GTB Gas Seal Ring

This item will fit Vehicles with the following Engine Codes:

Audi A4 / Avant - CCWB (211) CCWA (239) CCLA (239) CAPA (240)

Audi A4 / S4 / Avant / quattro - CCWB (211) CCWA (239) CCLA (239) CAPA (240)

Audi A4 allroad quattro - CCWA (239)

Audi A5 / S5 Cabriolet - CCWA (239)

Audi A5 / S5 Coupe Sport - CCWB (211) CCWA (239) CAPA (240)

Audi A6 / Avant - CDYB (211) CDYC (239) CDYA (239)

Audi A6 / S6 / Avant / quattro - CDYB (211) CDYC (239) CDYA (239)

Audi A6 allroad quattro - CDYB (211) CDYC (239) CDYA (239)

Audi Q5 - CCWB (211) CCWA (239)

Audi Q7 - CASB (211) CCMA (239) CASA (240)

VW Phaeton - CARA (234) CEXA (239) CEXB (245)

VW Touareg - CASD (204) CASB (211) CASC (239) CASA (240)

Suitable for VAG Part Numbers - GTB2260VK Elongated Flange:

059145722S - 059145722 S - 059 145 722 S
059145722L - 059145722 L - 059 145 722 L
059145654AL - 059145654 AL - 059 145 654 AL

Garrett Part Numbers - GTB2260VK Elongated Flange:

776469-5 - 776469-0005 - 776469-0005S - 776469-5005 - 776469-5005S
776469-4 - 776469-0004 - 776469-0004S - 776469-5004 - 776469-5004S
769705-8 - 769705-0008 - 769705-0008S - 769705-5008 - 769705-5008S
769705-7 - 769705-0007 - 769705-0007S - 769705-5007 - 769705-5007S
769705-6 - 769705-0006 - 769705-0006S - 769705-5006 - 769705-5006S

Suitable for VAG Part Numbers - GTB2260VK Even Spaced Flange:

059145722J - 059145722 J - 059 145 722 J
059145722M - 059145722 M - 059 145 722 M
059145722R - 059145722 R - 059 145 722 R

Garrett Part Numbers - GTB2260VK Even Spaced Flange:

776470-5003S - 776470 5003S - 7764705003S
776470-5001S - 776470 5001S - 7764705001S
769909-5010S - 769909 5010S - 7699095010S
769909-5009S - 769909 5009S - 7699095009S
776470-5003W - 776470 5003W - 7764705003W
