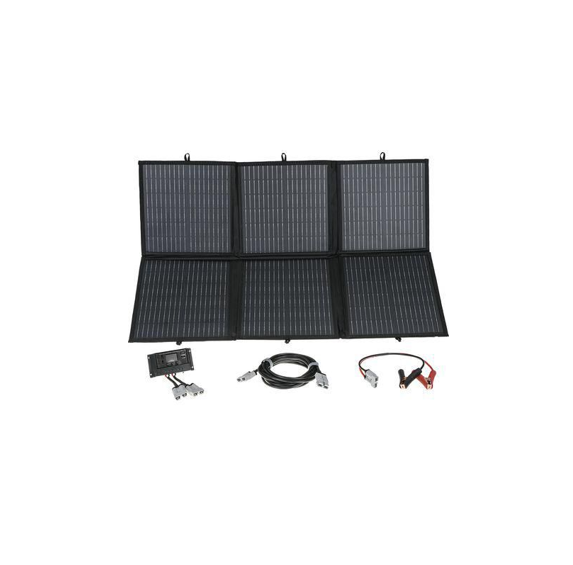

Drivetech 4x4 Foldable Solar Blanket 120W - DTSB120

SKU: DTSB120

Special Order — 2-3 Weeks Delivery

Specifications :

  • Rated Maximum Power (PM): 120W
  • Voltage at Pmax VMP: 18.5V
  • Current at Pmax IMP: 6.49A
  • Open-Circuit Voltage VOC: 22.3V
  • Short-Circuit Current ISC: 7.35A
  • Maximum Series Fuse Rating: 15A
  • Dimensions (Open): 1100x700x5mm (HxWxD)
  • Dimensions (Closed): 360x360x70mm (HxWxD)
  • Solar Cell Type: Monocrystalline
  • Tolerance: ± 3%
  • Normal Operating Cell Temp (NOCT): 47 ± 2°C
  • Maximum System Voltage: 1000VDC
  • Operating Temperature Solar Blanket: -40°C to +85°C
  • Connections: 50A Power Connectors
  • Regulator Type: PWM (pulse width modulation)
  • Regulator Current Rating: 20A
  • Maximum Regulator Voltage Input: 50V
  • Float Charge: 13.7V - Default, Adjustable
  • Discharge Stop: 10.7V - Default, Adjustable
  • Discharge Reconnect: 12.6V - Default, Adjustable
  • USB Output: 5V 3A
  • Kit Weight Including Panel and Accessories: 5.95kg
  • Warranty: 12 months

This product cannot be used in the rain. Water damage is not covered under warranty.
