Name: Darkside 1.9 8v PD105 & 2.0 16v TDI PD, PPD and CR EGR Delete / Race Pipe
Brand: Darkside Developments
SKU: DSD1093
Price: 500.0 NZD
Availability: InStock

.price-ui--loading { display: block !important; opacity: 1 !important; }

$500.00

Darkside 1.9 8v PD105 & 2.0 16v TDI PD, PPD and CR EGR Delete / Race Pipe

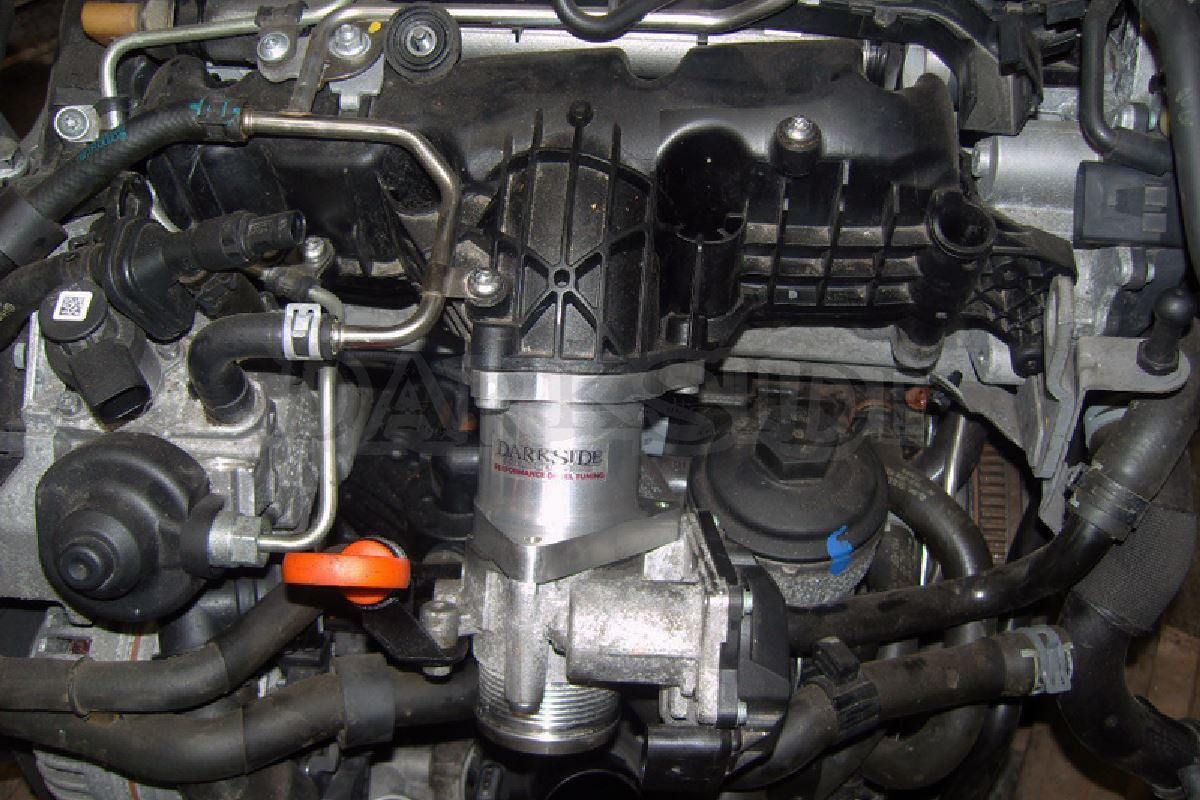

Darkside EGR Delete / Race Pipe for VAG 1.9 8v PD105 & 2.0 16v TDI PD, PPD engines Our kit directly replaces the EGR (Exhaust Gas Recirculation) Valve and fits perfectly between the ASV (Anti Shudder Valve) and Inlet Manifold, retaining the ASV allows for the engine to remain smooth when switching off the ignition. The Darkside EGR Delete Race Pipe is CNC machined here in the UK from a single piece of Billet Aluminium unlike other kits on the market that are welded. This improves appearance and also strength. We have found that the kits from other suppliers can crack due to the strain of the boost pipework hanging from the ASV, we have designed our race pipe to overcome this problem. All of our race pipes also include two types of grub screws, the vented grub screw allows you to neatly run a vacuum line for custom boost gauge installs. We also supply a blanking grub screw that sits flush with the race pipe offering an air tight seal and aesthetic finish. Other kits on the market are known to supply a bulky brass fitting to be used for the boost takeoff instead. Because our CNC machined race pipe is almost exactly the same profile as the OE valve, stock hardware can be used.

For more information on EGR Valves and Removal see here: https://www.darksidedevelopments.co.uk/egr-removal-delete/

Reduces inlet air temperatures = more power

Prevents further Intake and Turbo soot / carbon build up

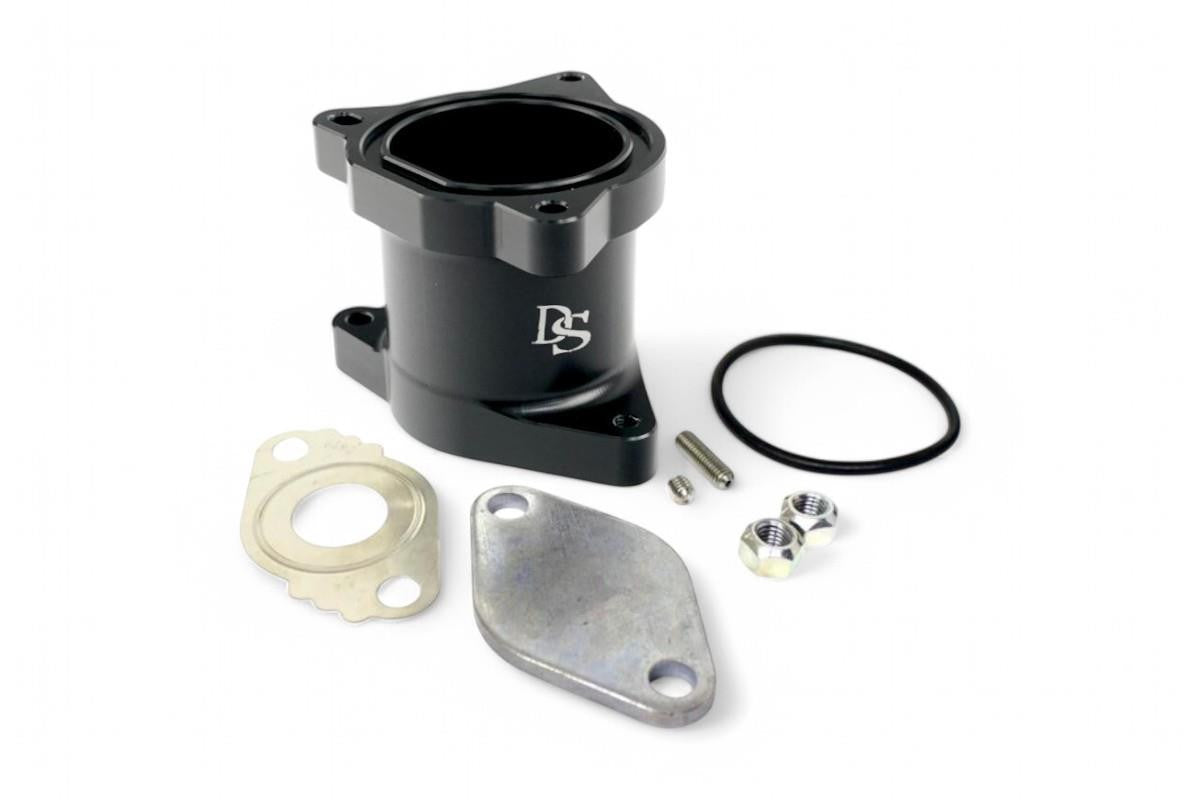

Available in Brushed Aluminium or Anodised Black Finish

CNC Machined from a single piece of Billet Aluminium

Made in the UK

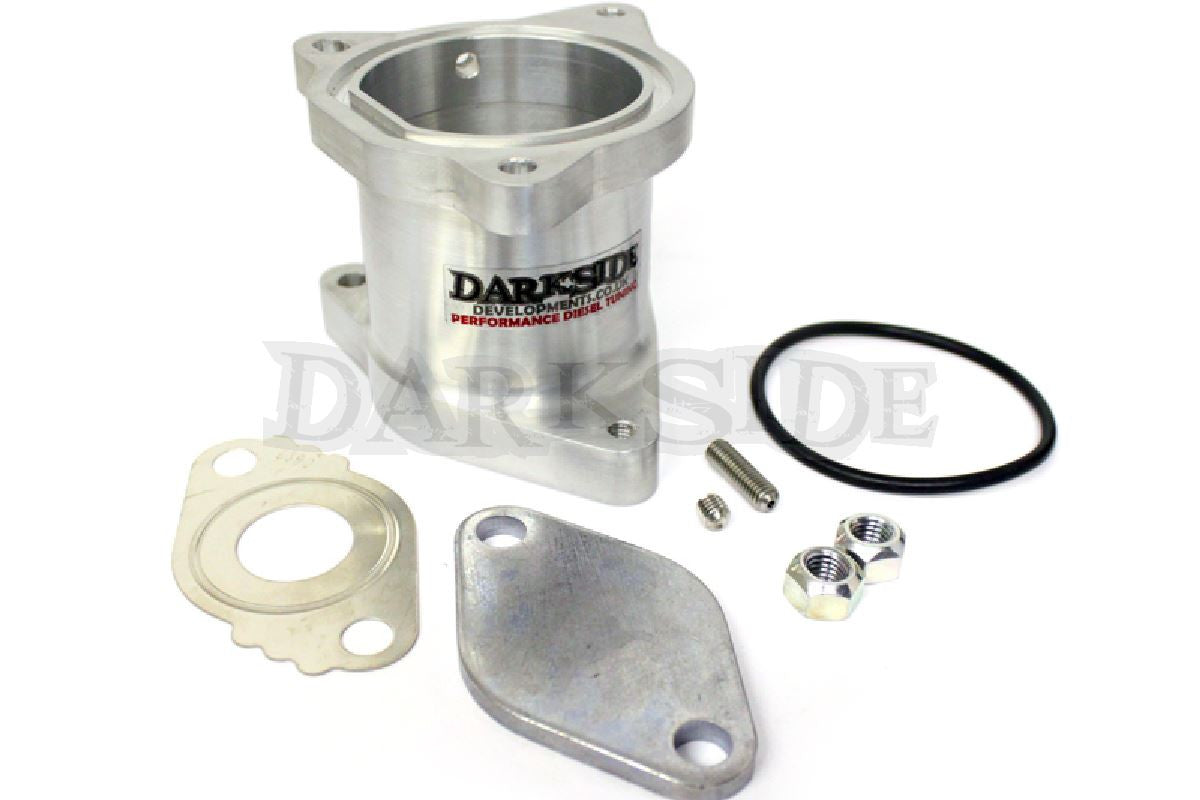

This Kit Consists of the following:

1x Darkside CNC Machined EGR Delete / Race Pipe
1x Nitrile O-Ring

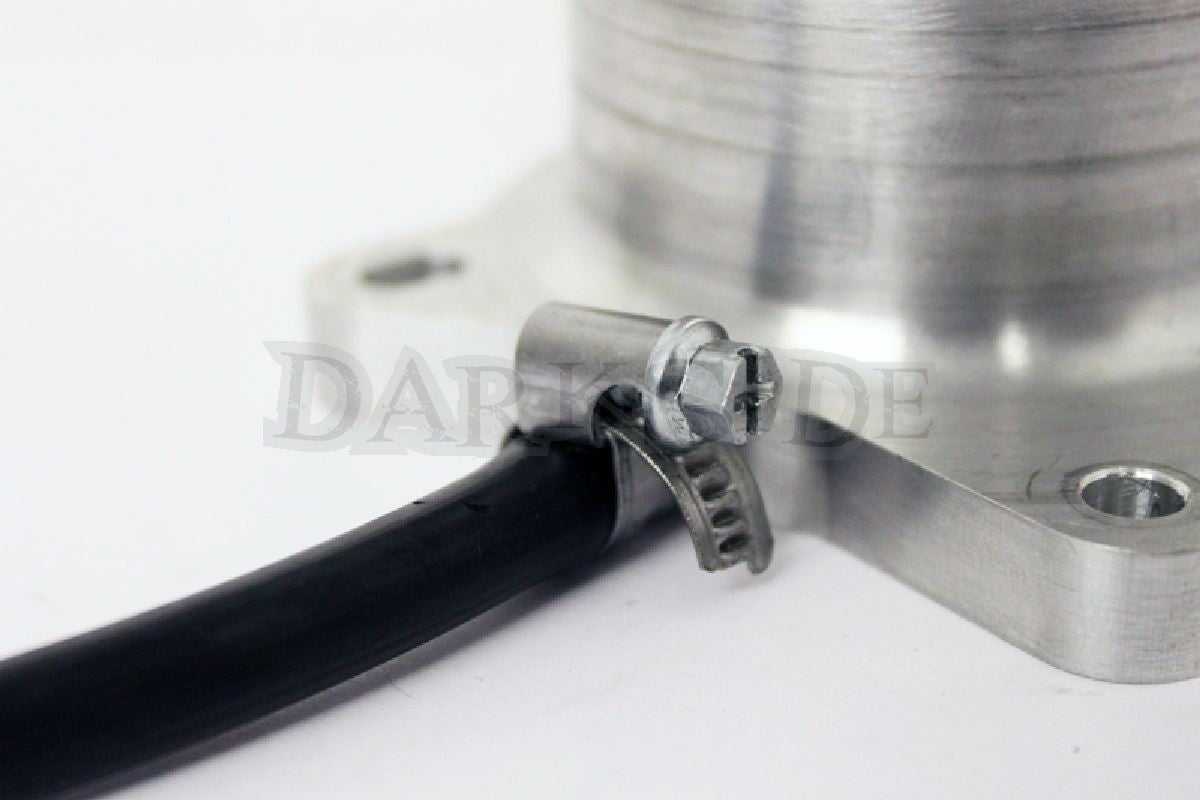

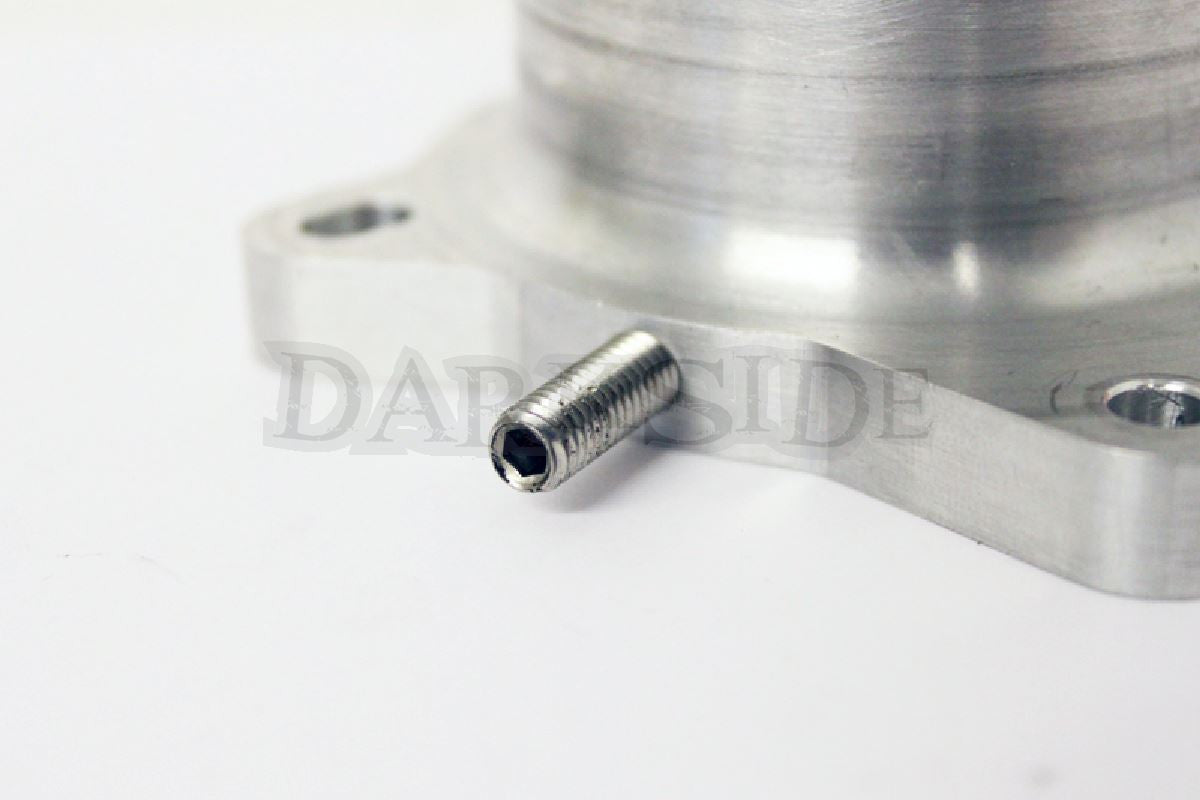

1x Long Vented Grub Screw (for Boost Gauge Takeoff)

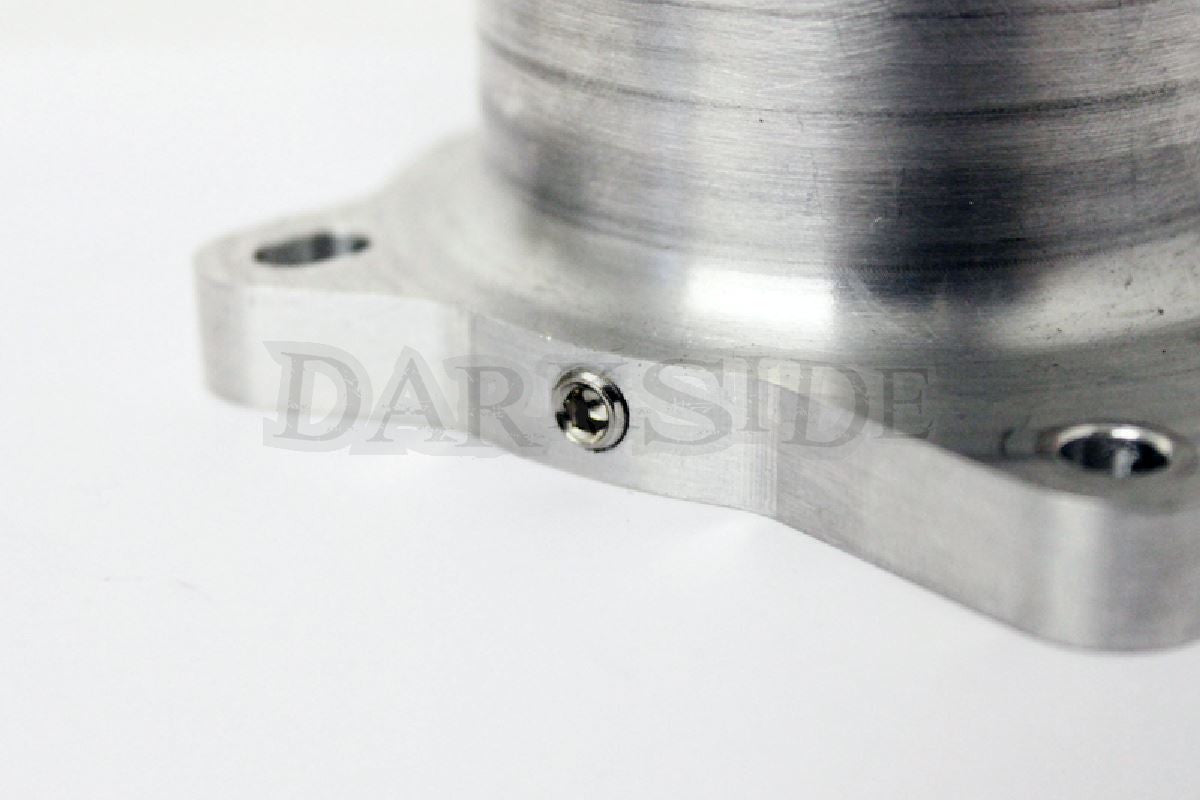

1x Short Grub Screw
2x M8 Nuts (for Turbo EGR Port)
1x Darkside Large Blanking Plate (for Turbo EGR Port)
1x Large EGR Gasket (for Turbo EGR Port)
2x M6 Socket Cap Bolts

Darkside 2.5" Stainless De-Cat Downpipe for Mk5 Platform 1.9 TDI 2WD:

https://www.darksidedevelopments.co.uk/products/darkside-2-5-stainless-de-cat-downpipe-for-mk5-platform-1-9-tdi-2wd.html

Darkside 2.5" Stainless De-Cat Downpipe for 1.9 TDi Seat Ibiza, VW Polo and Skoda Fabia:

https://www.darksidedevelopments.co.uk/products/darkside-2-5-stainless-de-cat-downpipe-for-1-9-tdi-seat-ibiza-vw-polo-and-skoda-fabia.html

Darkside 2.5" Stainless De-Cat Downpipe for Mk5 2.0 TDI BKD PD140 2WD:

https://www.darksidedevelopments.co.uk/products/darkside-2-5-stainless-de-cat-downpipe-for-mk5-2-0-tdi-bkd-pd140-2wd.html

DPF Delete Downpipe for 2.0 TDi 16v PD170 / PPD170 / CR140 and CR170

https://www.darksidedevelopments.co.uk/products/dpf-delete-downpipe-for-2-0-tdi-16v-pd170-ppd170-cr140-and-cr170.html

Fitment Data

This Kit will fit Vehicles with the following Engine Codes:

1.2 TDI Engines

VW Lupo 3L - AYZ (61)

1.9 8v PD TDI Engines

Audi A3 / S3 - AXR (101) BXE (105) BKC (105) AZV (136) BKD (140)

Seat Altea - BXF (90) BXE (105) BKC (105) AZV (136) BKD (140)

Seat Cordoba / Vario - AXR (101) BLT (131)

Seat Ibiza - AXR (101) BLT (131)

Seat Leon - BXF (90) AXR (101) BXE (105) BKC (105) AZV (136) BKD (140)

Seat Toledo - AXR (101) BXE (105) BKC (105) AZV (136) BKD (140)

Skoda Fabia - AXR (101) BSW (105) BLT (131)

Skoda Octavia - AXR (101) BXE (105) BKC (105) AZV (136) BKD (140)

Skoda Roomster - AXR (101) BSW (105)

Skoda Routan - AXR (101) BSW (105)

Skoda Superb - BXE (105) BKD (140)

VW Beetle - BSW (105)

VW Beetle Cabrio - AXR (101) BSW (105)

VW Bora - AXR (101) BXE (105) BKC (105) BKD (140)

VW Clasico / Jetta - AXR (101)

VW Golf Mk5 - BXF (90) BRU (90) AXR (101) BXE (105) BKC (105) AZV (136) BKD (140)

VW Golf Plus - BXF (90) BRU (90) BXE (105) BKC (105) BEE (131) AZV (136) BKD (140)

VW Jetta - AXR (101) BXE (105) BKC (105) AZV (136) BKD (140)

VW Jetta Variant - AXR (101) BXE (105)

VW New Beetle - BSW (105)

VW Passat / Variant - BXE (105) BKC (105) BWV (115) BWV (120) BVE (122) BMA (136) BKP (140)

VW Polo - AXR (101) BLT (131)

VW Polo Classic / Variant - AXR (101) BLT (131)

VW Touran - BXF (90) BRU (90) AVQ (100) BXE (105) B KC (105) AZV (136) BKD (140)

VW Vento - BXE (105) BKC (105) BKD (140)

VW Vento Variant - BXE (105)

2.0 16v PD & PPD TDI Engines

VW Golf Mk5 - BKD, AZV (PD140) BMN (PD170)

VW Golf Plus - BKD, AZV (PD140) BMN (PD170)

VW Jetta - BKD, AZV (PD140)

VW Passat - BWV 120, BVE 122, BMA 136, BKP PD140, BMA & BUZ 163, BMR PD170

VW Touran - BKD, AZV (PD140) BMN (PD170)

VW Sharan - BVH (136) BRT (140) (Check that EGR valve is separate to inlet manifold)

Audi A3 - BKD, AZV (PD140) BMN (PD170)

Audi A4 - (2005 - 2008) - BVG (121) BVF (126) BLB, BRE (140) BVA (163) BRD (170)

Audi A6 - (2004 - 2008) - BNA, BRF (136) BLB, BRE (140)

Seat Leon - BKD, AZV (PD140) BMN (PD170)

Seat Toledo - BKD, AZV (PD140)

Seat Alhambra - BRT (140) (Check that EGR valve is separate to inlet manifold)

Seat Altea - BKD, AZV (PD140) BMN (PD170)

Skoda Octavia - BKD, AZV (PD140) BMN (PD170)

2.0 16v Common Rail (CR) TDI Engines

Audi A3 / S3 - CBAA (136) CBAB (140) CBBB (170)

Audi A3 Cabriolet - CBAA (136) CBAB (140)

Audi A4 / Avant - CAGC (120) CAGB (136) CMEA (143) CAGA (143) CAHB (163) CAHA (170)

Audi A4 / S4 / Avant / quattro - CAGC (120) CAGB (136) CMEA (143) CAGA (143) CAHB (163) CAHA (170)

Audi A4 allroad quattro - CAGB (136) CAGA (143) CAHB (163) CAHA (170)

Audi A5 / S5 Cabriolet - CAHB (163) CAHA (170)

Audi A5 / S5 Cou pe Sport - CAGB (136) CMEA (143) CAGA (143) CAHB (163) CAHA (170)

Audi A6 / Avant - CAGB (136) CAHB (163) CAHA (170)

Audi A6 / S6 / Avant / quattro - CAGB (136) CAHB (163) CAHA (170)

Audi Q5 - CAGB (136) CAGA (143) CAHB (163) CAHA (170)

Audi TT / TTS Coupe / Roadster - CBBB (170)

Seat Altea - CEGA (170)

Seat Exeo - CAGC (120) CAGA (143) CAHA (170)

Seat Leon - CEGA (170)

Seat Toledo - CEGA (170)

Skoda Octavia - CEGA (170)

Skoda Superb - CBBB (170)

Skoda Yeti - CBDB (140) CEGA (170)

VW Eos - CBAB (140)

VW Golf Mk6 - CBDC (110) CBAA (136) CBDA (136) CBAB (140) CBDB (140) CBBB (170)

VW Golf Plus - CBDC (110) CBDA (136) CBDB (140)

VW Jetta - CBDA (136) CBDB (140) CEGA (170)

VW Passat / Variant - CBDC (110) CBAA (136) CBAB (140) CBAC (143) CBBB (170)

VW Passat CC - CBAA (136) CBAB (140) CBAC (143) CBBB (170)

VW Scirocco - CBDB (140) CBBB (170)

VW Tiguan - CBAA (136) CBAB (140) CBBA (163) CBBB (170)

Replaces Genuine VAG Part Numbers:

038131501AN - 038131501 AN - 038 131 501 AN
038129637D - 038129637 D - 038 129 637 D
038131501S - 038131501 S - 038 131 501 S
038131501AF - 038131501 AF - 038 131 501 AF
03G128063R - 03G128063 R - 03G 128 063 R
03G128063B - 03G128063 B - 03G 128 063 B
03G128063K - 03G128063 K - 03G 128 063 K
03G128063L - 03G128063 L - 03G 128 063 L
03G128063R - 03G128063 R - 03G 128 063 R
03L131501C - 03L131501 C - 03L 131 501 C
03L131501D - 03L131501 D - 03L 131 501 D
03L131501E - 03L131501 E - 03L 131 501 E
03L131501G - 03L131501 G - 03L 131 501 G
03L131501K - 03L131501 K - 03L 131 501 K
03G131501J - 03G131501 J - 03G 131 501 J
03G131501Q - 03G131501 Q - 03G 131 501 Q
03G131501B - 03G131501 B - 03G 131 501 B
03G131501R - 03G131501 R - 03G 131 501 R

Please Note: Once the EGR valve is either removed or blanked off the vehicles ECU will no longer get a signal from the EGR Valve causing the emmisions workshop light to appear on the dash board. We can remove this by reprogramming the EGR software on the ECU.

Darkside Developments accepts no responsibility for the use of this part on the public highway where removal of emissions controls is prohibited. It is the customers responsibility to ensure they comply with rules and laws relating to their home country.

Estimated Fitting Costs

Darkside Developments offers professional in-house fitting for all products at our workshop located in Barnsley, South Yorkshire

Estimated Labour Time (Hours)	Labour Cost
120
For more Information or to make a booking, please CONTACT US

Availability: ETA 1-2 weeks

Sourced from Darkside Developments UK. Shipped directly from the UK to New Zealand.
