CTS Turbo Rear Subframe Mount Insert Kit for MQB AWD vehicles

The CTS MQB AWD Rear Subframe Mount Insert Kit is designed to improve the responsiveness of the rear suspension and differential for the MQB Platform. MQB Audi/Volkswagens come equipped with Haldex AWD and use rear subfame mounts made of rubber. When driven at the limit these can cause the rear end to feel sloppy. This kit is engineered to fill the voids in the factory mounts while limiting vertical movement. This maintains the rear geometry of the rear suspension allowing for better cornering and a more responsive driving experience. Can be used with CTS-HW-216 for AWD models to complete your rear subframe upgrade. We highly recommend replacing the factory torque-to-yield bolts when installing these inserts. Torque NEW subframe bolt to 70 Nm + 180°. Torque used subframe bolts to 90 NM+blue thread lock. Included:

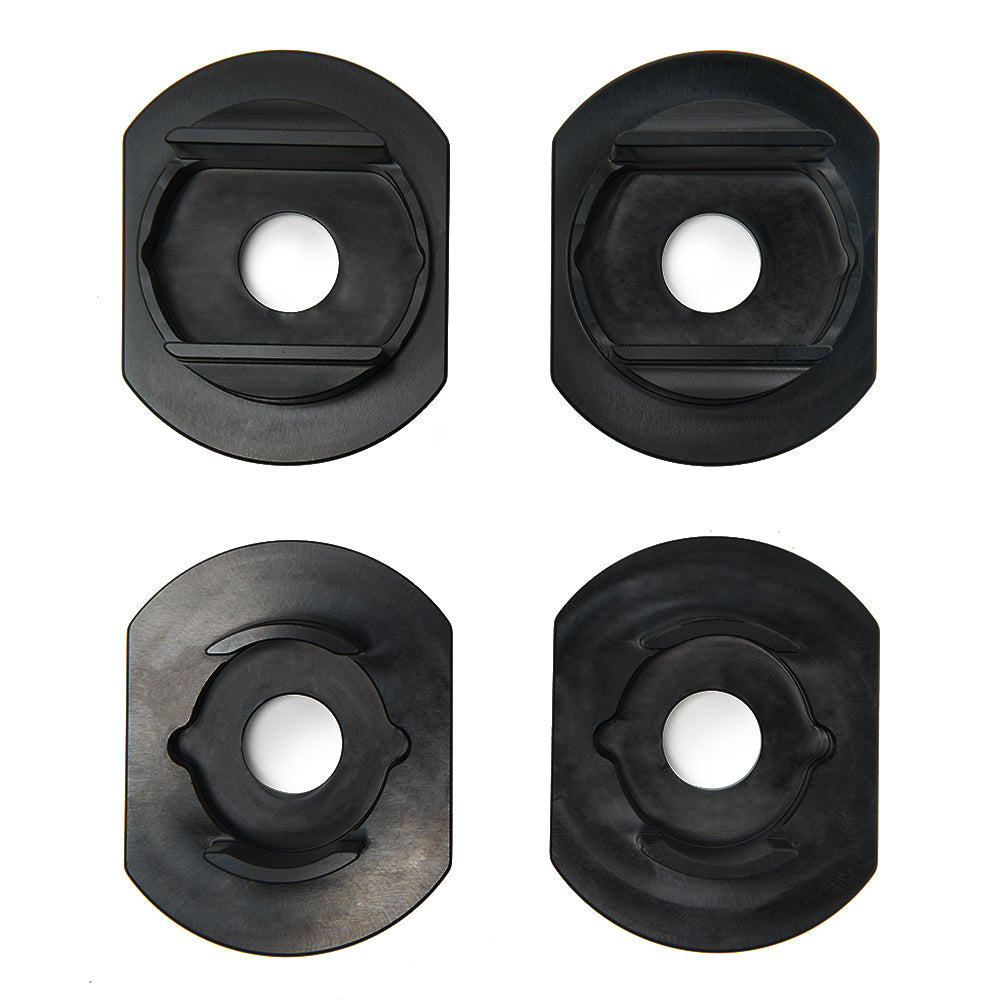

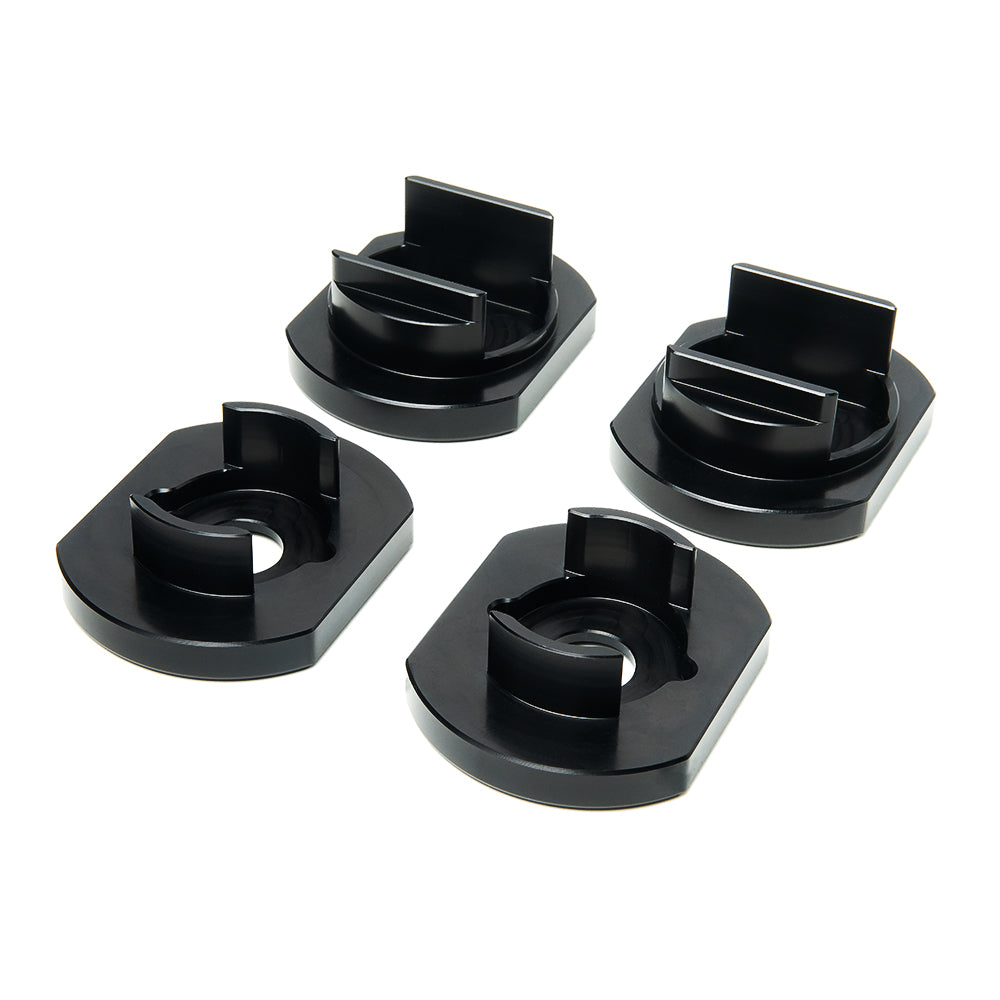

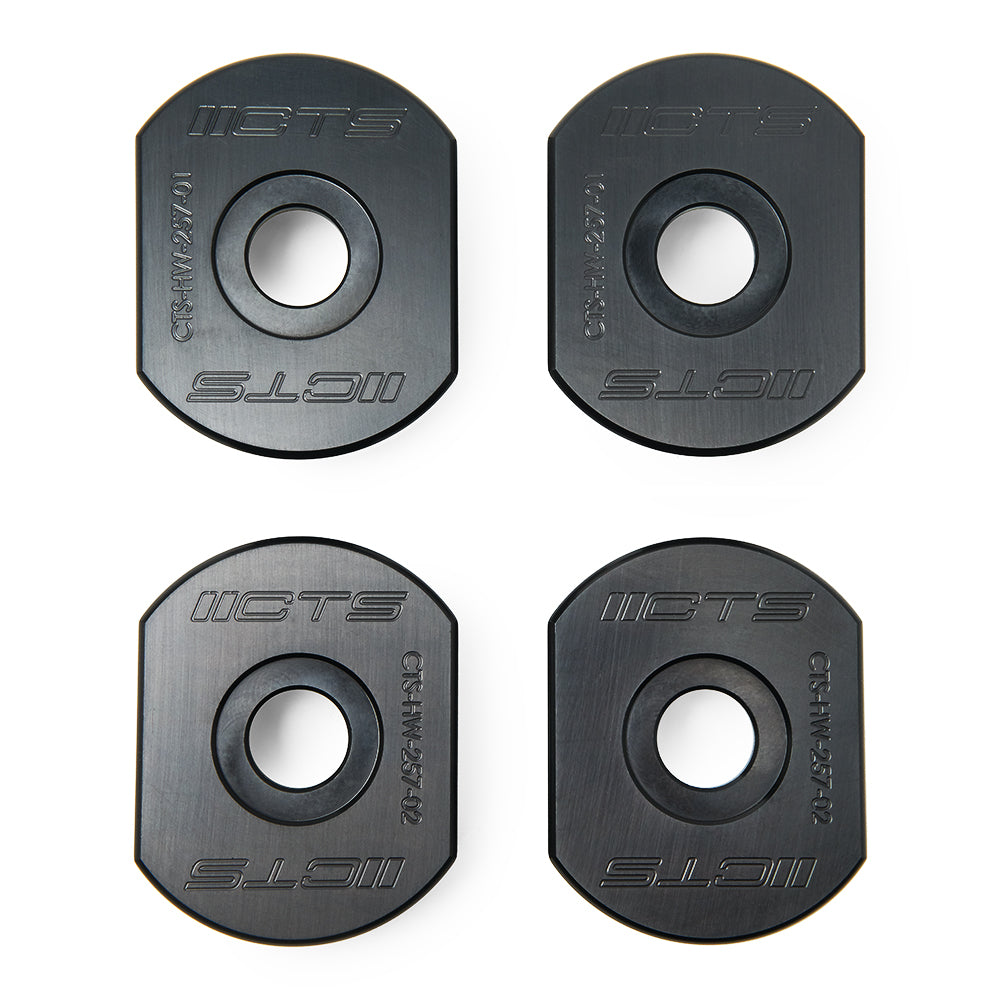

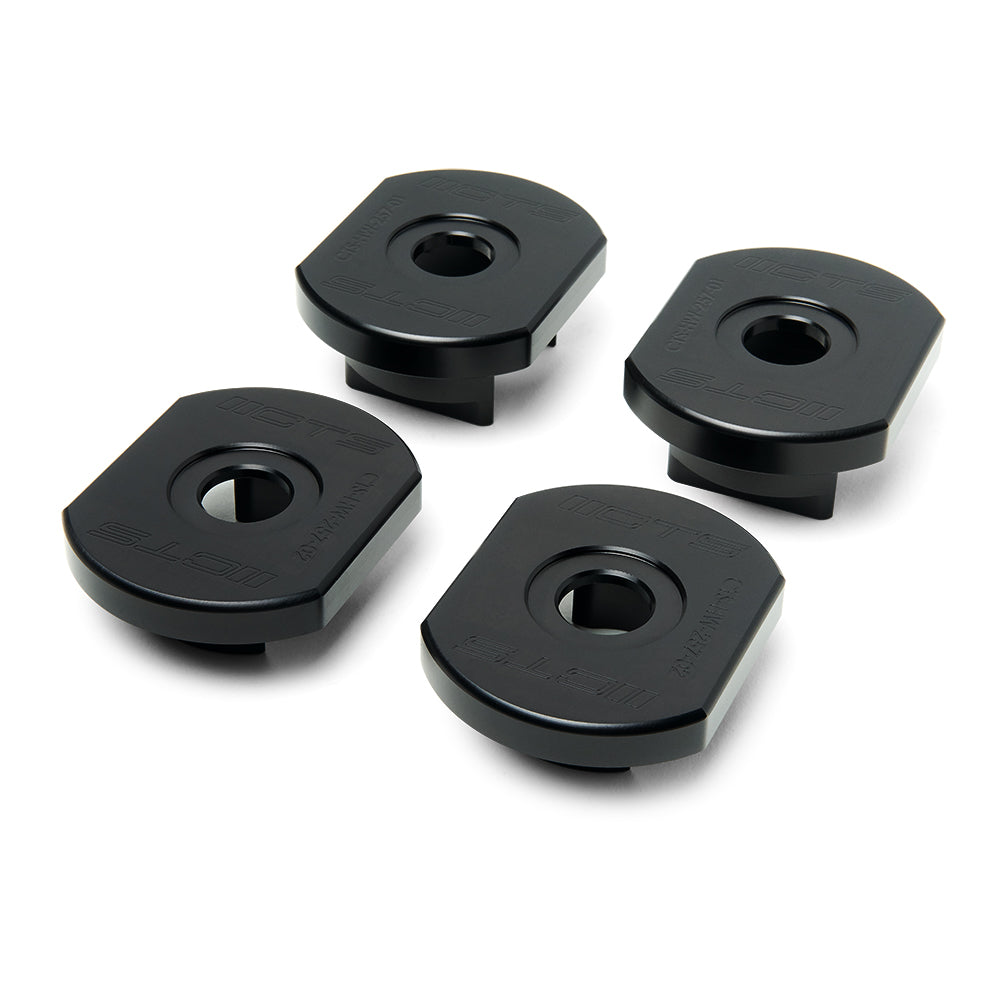

• 2 x CTS Billet Aluminum MQB AWD Rear Subframe Insert (Front, part number CTS-HW-257-01)
• 2 x CTS Billet Aluminum MQB AWD Rear Subframe Insert (Rear, part number CTS-HW-257-02)

Optional:

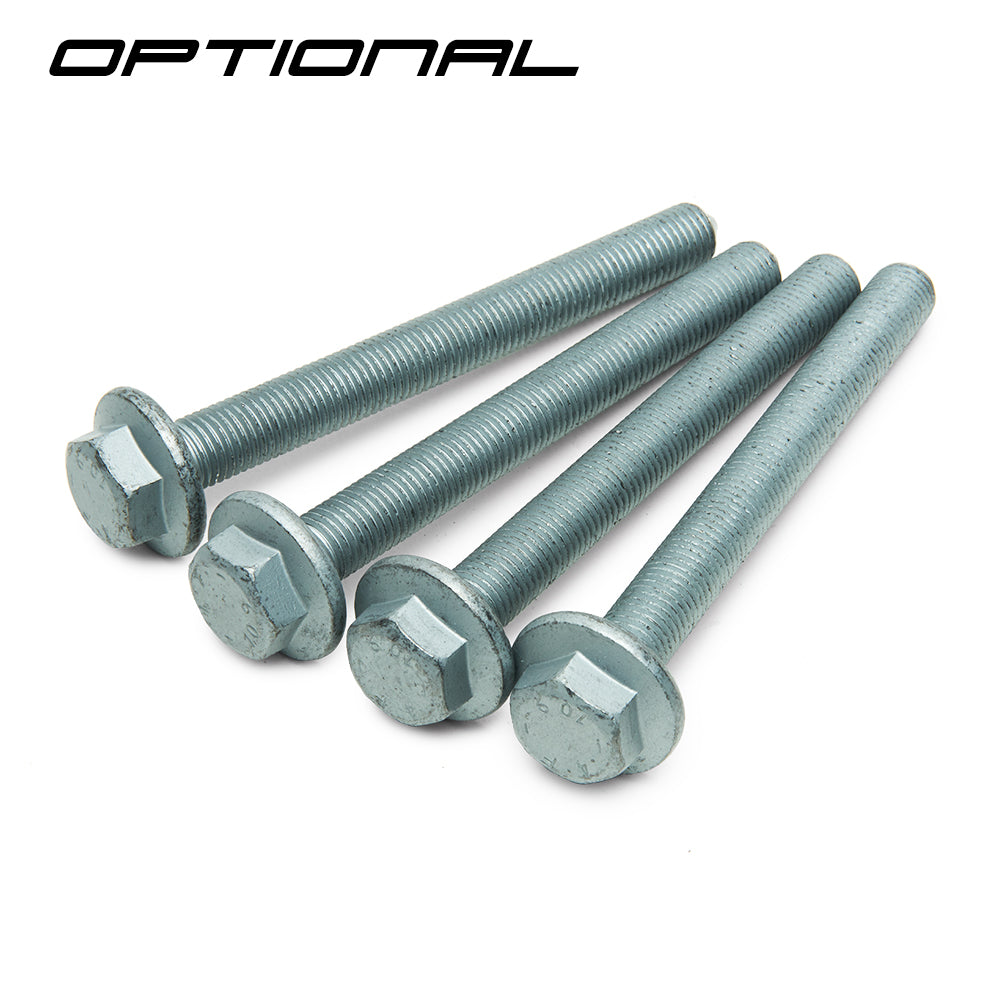

• 4 x Rear Subframe Stretch Bolts (recommended)

Fitment for MQB platform with Haldex 4Motion/Quattro:

• 2015 - Present Audi A1/S1 Quattro (8X)
• 2015 - Present Audi A3/S3/RS3 Quattro (8V/8V.5 - MQB)
• 2022 - Present Audi RS3 (8Y)
• 2016 - Present Audi TT/TTS/TTRS Quattro (MK3- MQB)
• 2015 - Present Volkswagen Golf R (Mk7/MK7.5/MK8 - MQB)
• 2015 - Present Volkswagen Sportwagen/Alltrack (Mk7 - MQB)
• 2013 - 2015 Audi TT/TTS/TTRS Quattro (8J) - With Build Date After 05/29/2012
• 2018 - 2020 Audi TT/TTS/TTRS Quattro (8S)
