CTS Turbo FRONT Subframe Bushing Insert Kit: MK5/MK6/8P Audi A3 with ARP Bolts
$409.02 NZD
Sale price
$409.02 NZD
Unit price
per
Sale
Sold out
Special orderTax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Fitment
| Make | Model | Year | Chassis |
|---|---|---|---|
| Audi | A3 | 2006 | 8P |
| Audi | A3 | 2007 | 8P |
| Audi | A3 | 2008 | 8P |
| Audi | A3 | 2009 | 8P |
| Audi | A3 | 2010 | 8P |
| Audi | A3 | 2011 | 8P |
| Audi | A3 | 2012 | 8P |
| Audi | A3 | 2013 | 8P |
| Volkswagen | CC | 2009 | MK1 |
| Volkswagen | CC | 2010 | MK1 |
| Volkswagen | CC | 2011 | MK1 |
| Volkswagen | CC | 2012 | MK1 |
| Volkswagen | CC | 2013 | MK1 |
| Volkswagen | CC | 2014 | MK1 |
| Volkswagen | CC | 2015 | MK1 |
| Volkswagen | CC | 2016 | MK1 |
| Volkswagen | CC | 2017 | MK1 |
| Volkswagen | GOLF | 2006 | MK5 |
| Volkswagen | GOLF | 2007 | MK5 |
| Volkswagen | GOLF | 2008 | MK5 |
| Volkswagen | GOLF | 2009 | MK5 |
| Volkswagen | GOLF | 2010 | MK6 |
| Volkswagen | GOLF | 2011 | MK6 |
| Volkswagen | GOLF | 2012 | MK6 |
| Volkswagen | GOLF | 2013 | MK6 |
| Volkswagen | GOLF | 2014 | MK6 |
| Volkswagen | GOLF R | 2012 | MK6 |
| Volkswagen | GOLF R | 2013 | MK6 |
| Volkswagen | GOLF R32 | 2008 | MK6 |
| Volkswagen | GTI | 2006 | MK5 |
| Volkswagen | GTI | 2007 | MK5 |
| Volkswagen | GTI | 2008 | MK5 |
| Volkswagen | GTI | 2009 | MK5 |
| Volkswagen | GTI | 2010 | MK6 |
| Volkswagen | GTI | 2011 | MK6 |
| Volkswagen | GTI | 2012 | MK6 |
| Volkswagen | GTI | 2013 | MK6 |
| Volkswagen | GTI | 2014 | MK6 |
| Volkswagen | JETTA | 2005 | MK5 |
| Volkswagen | JETTA | 2006 | MK5 |
| Volkswagen | JETTA | 2007 | MK5 |
| Volkswagen | JETTA | 2008 | MK5 |
| Volkswagen | JETTA | 2009 | MK5 |
| Volkswagen | JETTA | 2010 | MK5 |
| Volkswagen | JETTA | 2011 | MK6 |
| Volkswagen | JETTA | 2012 | MK6 |
| Volkswagen | JETTA | 2013 | MK6 |
| Volkswagen | JETTA | 2014 | MK6 |
| Volkswagen | JETTA | 2015 | MK6 |
| Volkswagen | JETTA | 2016 | MK6 |
| Volkswagen | JETTA GLI | 2006 | MK5 |
| Volkswagen | JETTA GLI | 2007 | MK5 |
| Volkswagen | JETTA GLI | 2008 | MK5 |
| Volkswagen | JETTA GLI | 2009 | MK5 |
| Volkswagen | JETTA GLI | 2010 | MK5 |
| Volkswagen | JETTA GLI | 2011 | MK6 |
| Volkswagen | JETTA GLI | 2012 | MK6 |
| Volkswagen | JETTA GLI | 2013 | MK6 |
| Volkswagen | JETTA GLI | 2014 | MK6 |
| Volkswagen | JETTA GLI | 2015 | MK6 |
| Volkswagen | JETTA GLI | 2016 | MK6 |
| Volkswagen | PASSAT | 2006 | B6 |
| Volkswagen | PASSAT | 2007 | B6 |
| Volkswagen | PASSAT | 2008 | B6 |
| Volkswagen | PASSAT | 2009 | B6 |
| Volkswagen | PASSAT | 2010 | B6 |
CTS Turbo is proud to announce our new billet subframe bushing insert kit (applications listed below). This kit is designed to eliminate the clunk that is commonly found on MK5's and MK6's due to the stretching of OEM bolts stretching and failing. Our kit will repair the OEM TSB for the clunk correctly by reducing the large factory tolerances at the subframe mounting points.
Features:
- Interlocking subframe shims center the front subframe to the body
- Machined in house from T6061 Billet aluminum
- OE replacement stretch bolts (4) and upgraded ARP bolts (2)
- Eliminates subframe clunks and shifting

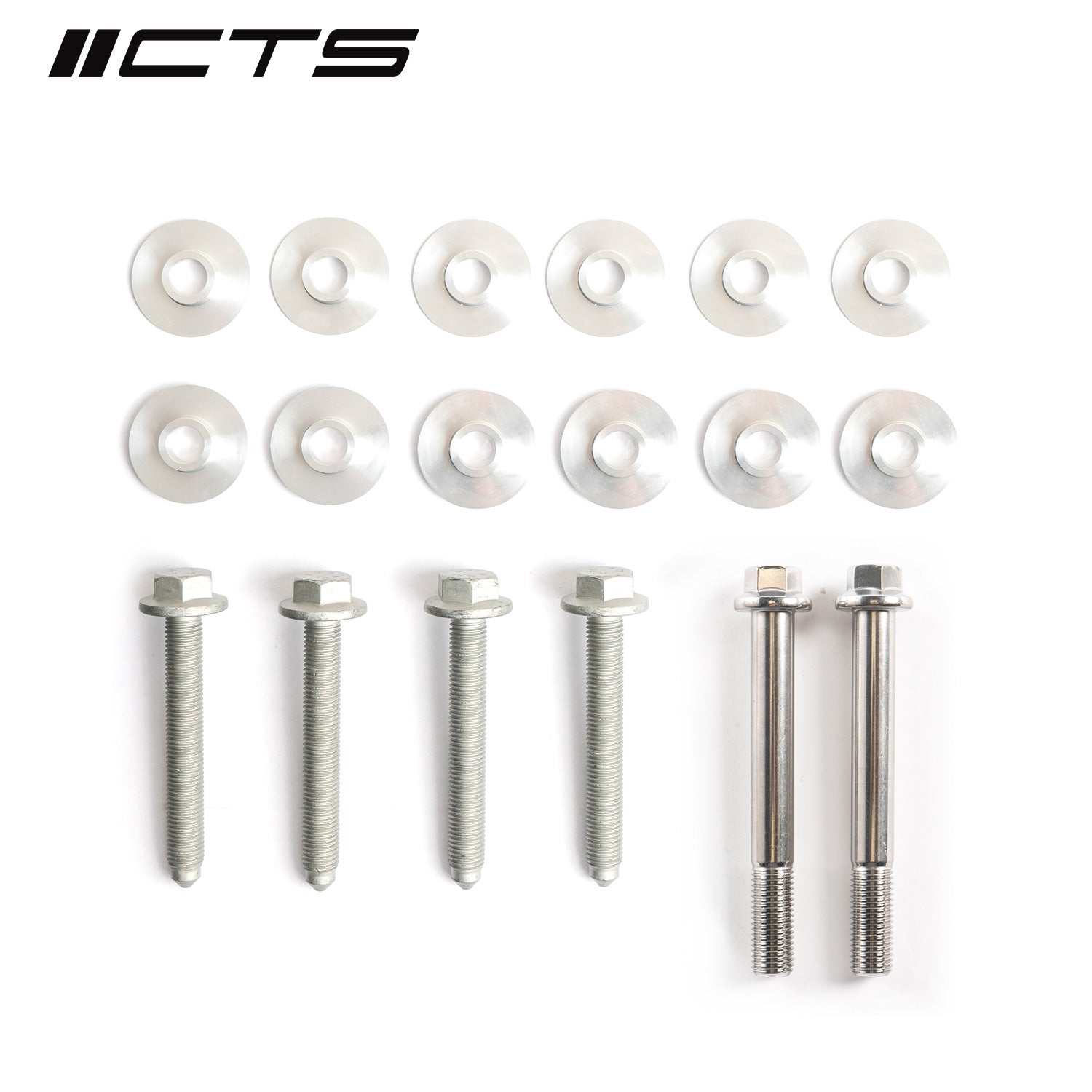

Kit Components:

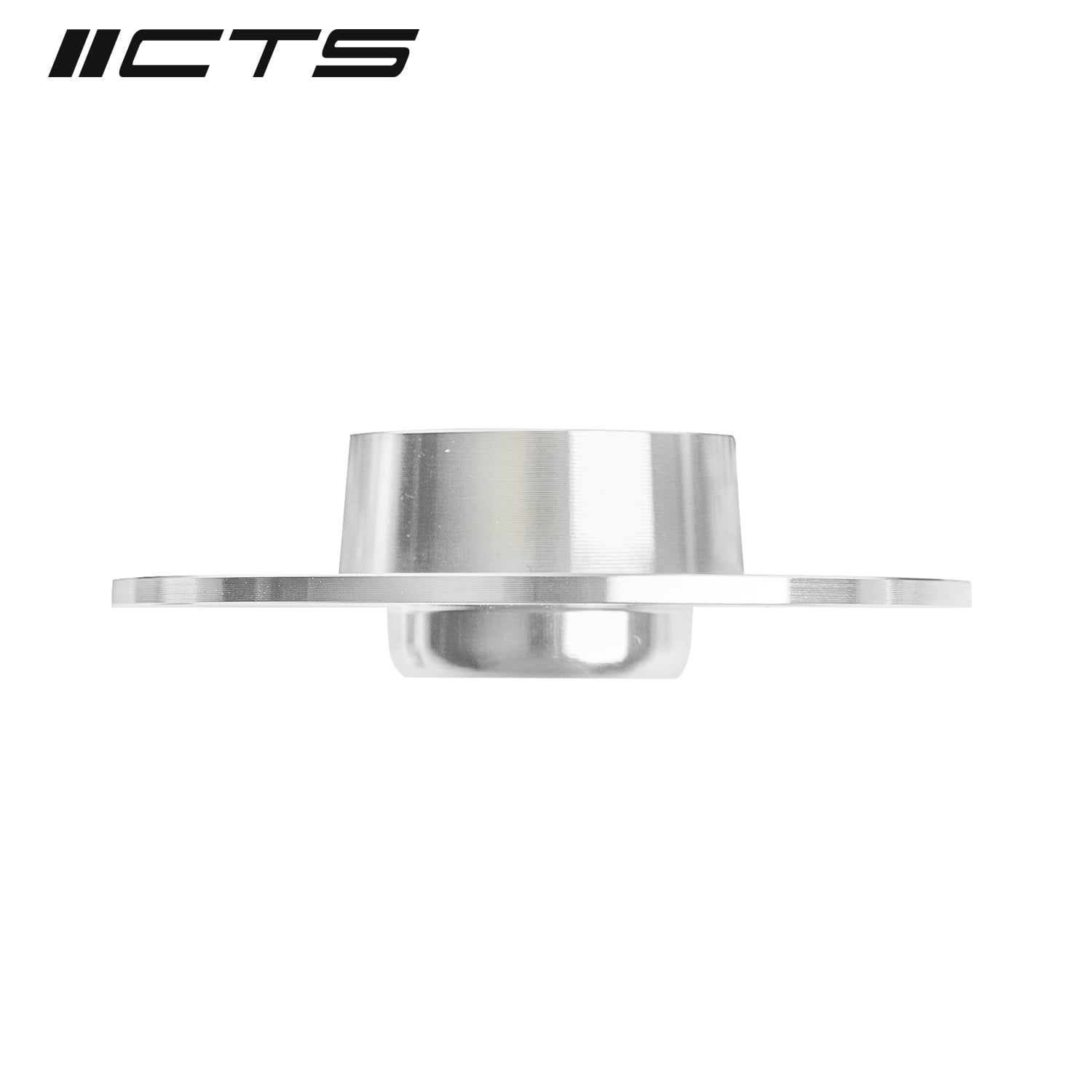

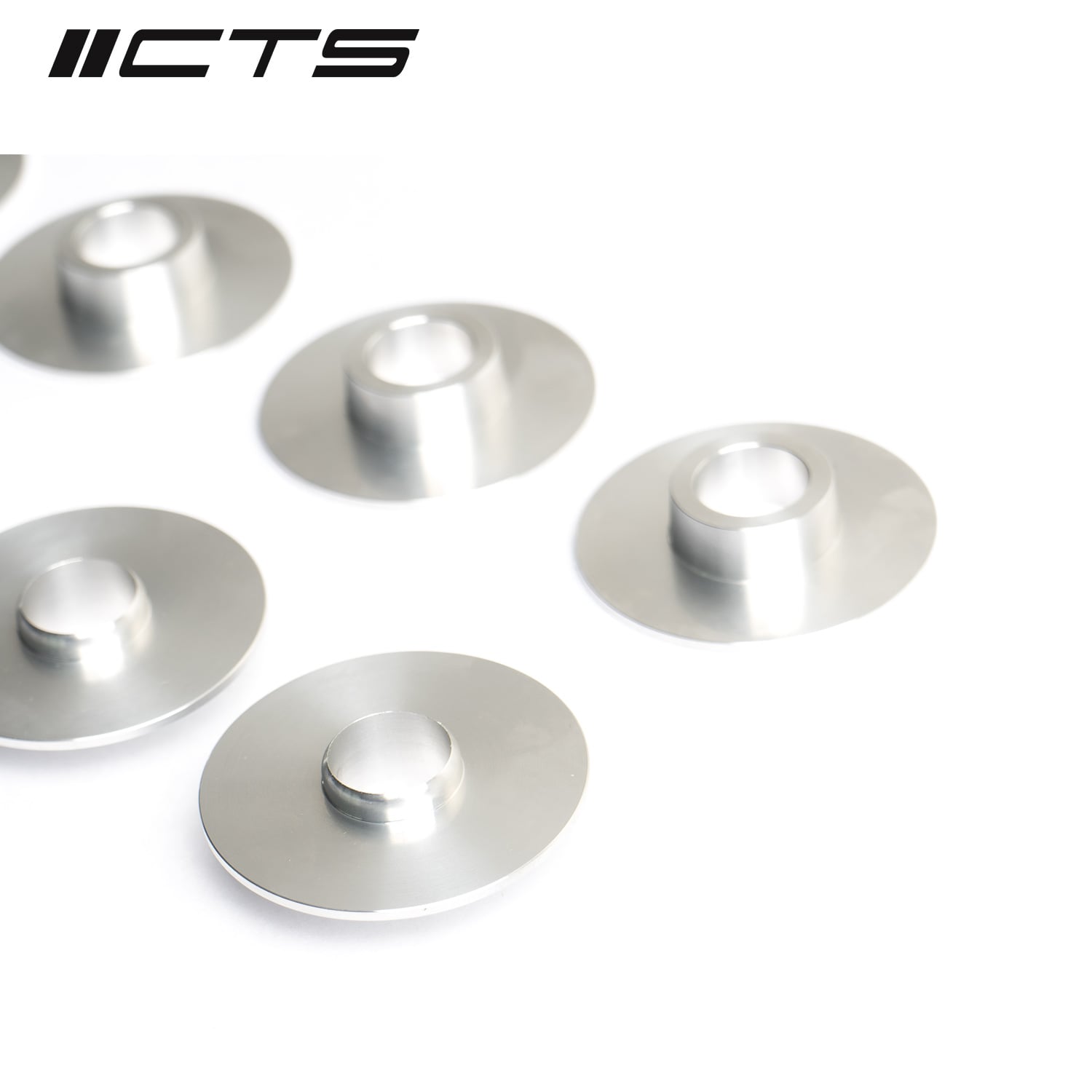

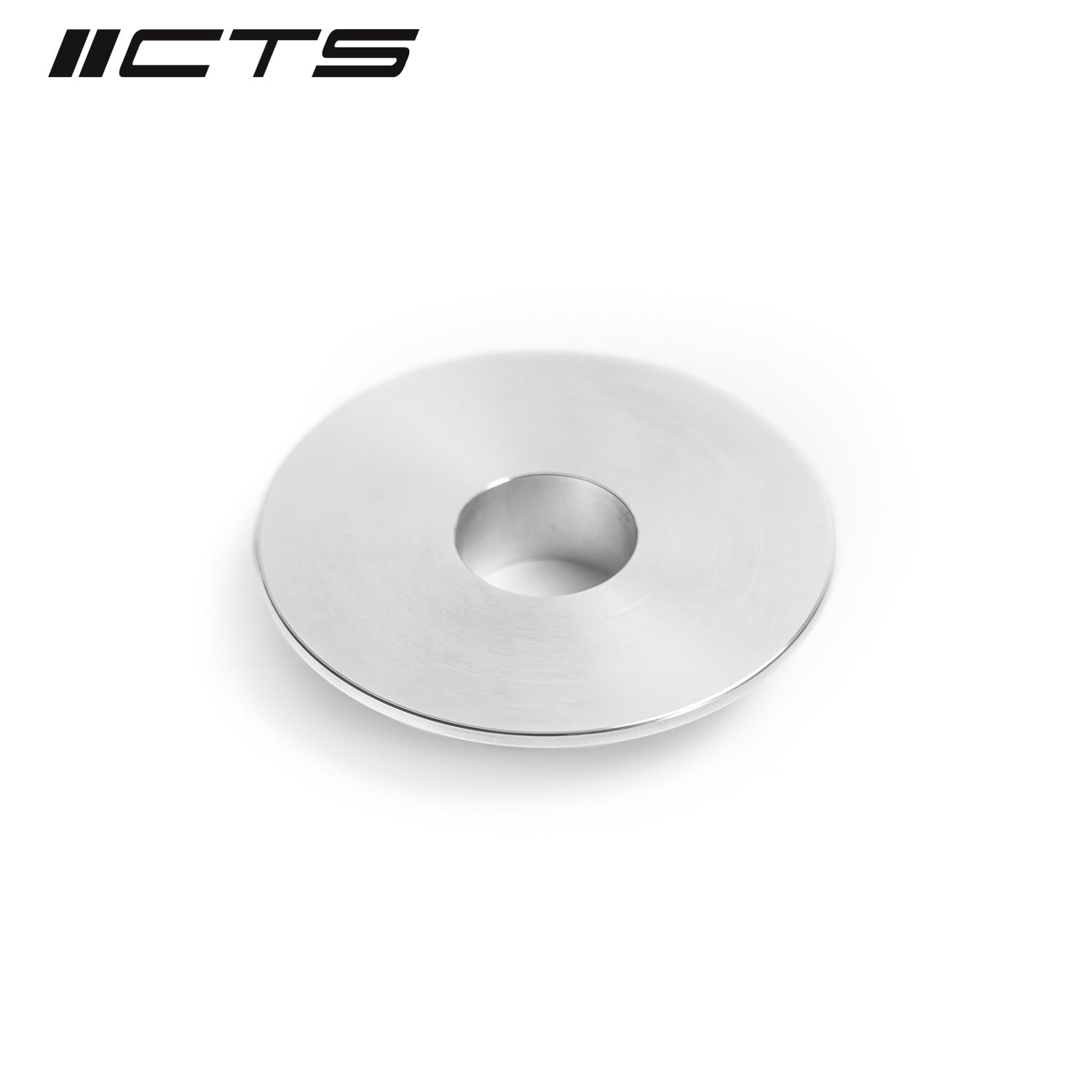

- 6 x Upper Insert
- 6 x Lower Insert
- 4 x Short OE Bolts

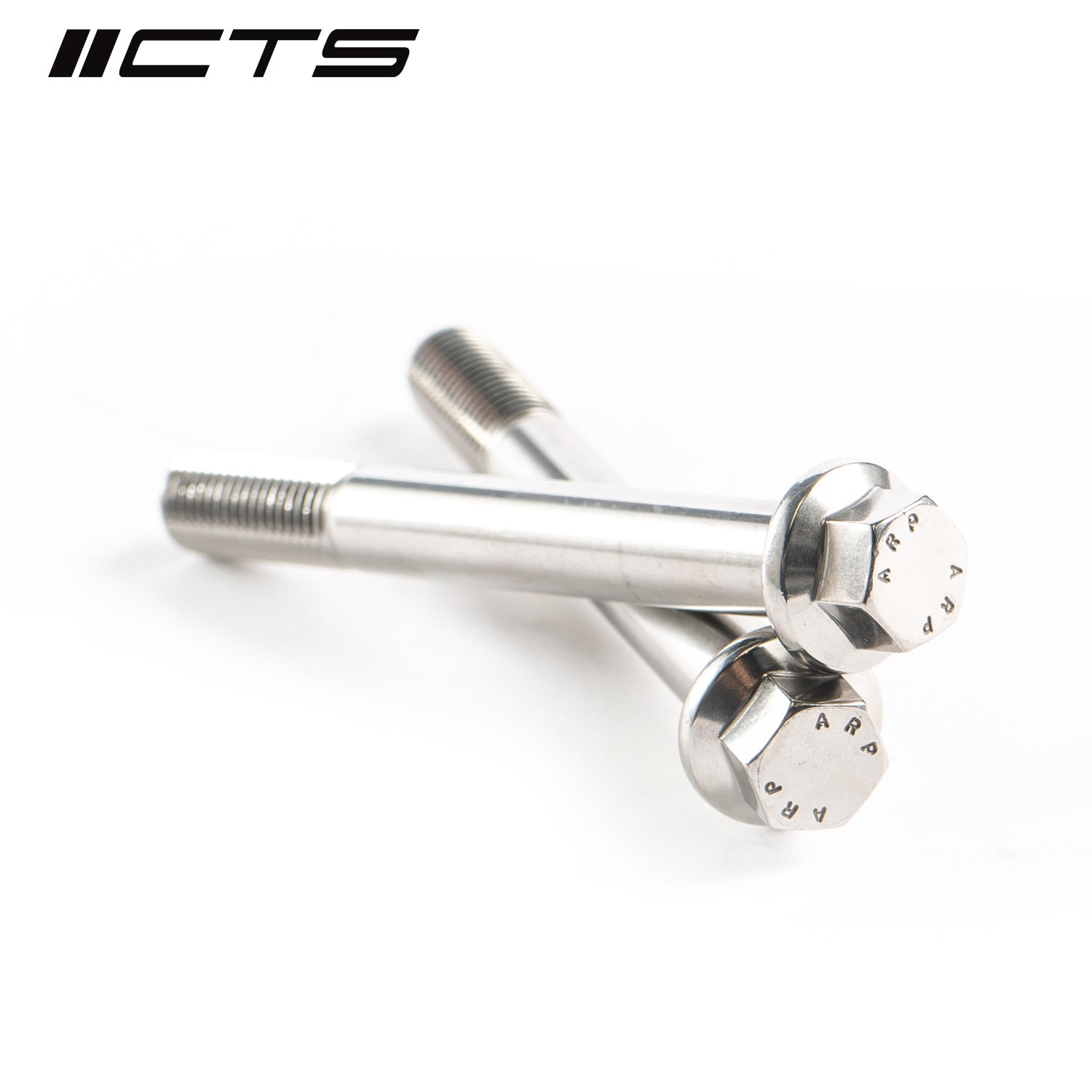

- 2 x ARP Long Bolts
- ARP bolts = 85Nm (can be re-used)
- 18mm bolts = 70Nm+180deg (do not re-use)
- 16mm bolts = 50Nm + 90deg (can be re-used once)
- 13mm bolts = 20Nm + 90deg (can be re-used once)
- MK5 GTI/GLI/R32/Jetta/Rabbit
- MK6 GTI/Golf R/Golf - Aluminum Subframe only, will not fit Jettas with steel subframe
- 8P Audi A3/S3
- B6 Passat/Passat CC
SKU: CTS-HW-036-ARP
Shipped directly from the manufacturer. Please allow 5-10 business days for delivery.
