BMW 2 SERIES M235i F22 5-BOLT RWD REAR INTEGRATED (14-21) BC Racing BR Series RH Coilovers | 5.5/5.5KG.MM

BMW 2 SERIES M235i F22 5-BOLT RWD REAR INTEGRATED (14-21) BC Racing BR Series RH Coilovers | 5.5/5.5KG.MM

BC Racing BR Series RH Coilovers for the BMW 2 SERIES M235i F22 5-BOLT RWD REAR INTEGRATED (14-21) deliver precision suspension tuning with a 5.5/5.5KG.MM spring rate and pillowball top mounts on both front and rear setups. These coilovers combine adjustable damping characteristics with lightweight construction to enhance cornering response and chassis control on both road and track applications. Experience the handling refinement that BC Racing's BR Series engineering brings to your M235i's performance capabilities.

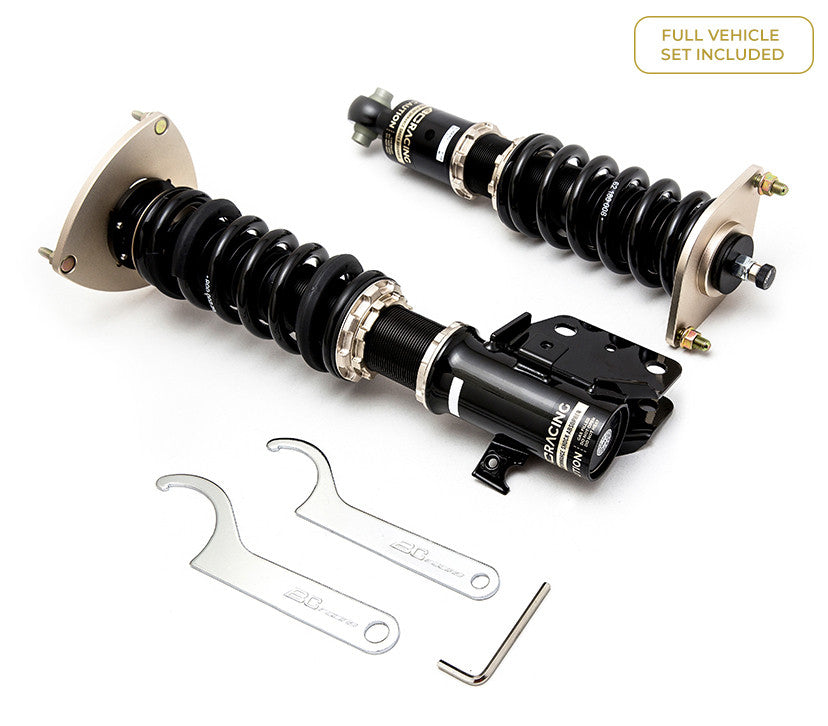

BC Racing BR Series Coilovers

The BC Racing BR Series offers entry into coilover suspension without sacrificing performance, comfort, build quality or handling. Each kit is developed through extensive vehicle-specific testing and refinement, ensuring the most well-balanced and affordable aftermarket suspension possible for each application. The BR series coilovers use a large 46mm diameter piston in a 53mm diameter damper body — as the damper operates, oil temperature rises and viscosity changes, which can alter damping characteristics. The enlarged 53mm body increases oil capacity, reducing the peak temperature and maintaining more consistent damping performance as a result.

Key Features

• 30-way adjustable damping
• Monotube damper design
• Ride height adjustment separate to spring preload
• Tapered bottom mount locking collar to prevent collar working loose
• Pillowball top mounts (depending on model)
• Bearing mounted upper spring platform
• Camber adjustable top mounts (depending on model)
• Custom spring rates available
• All spare parts available with low lead times
• Dust boot to protect damper seals
• 1 year manufacturer warranty

30-Way Damping Adjustment

A single adjuster controls both compression and rebound simultaneously, giving a wide tuning range without the complexity of separate circuits. The balance between front and rear axles can be shifted to influence handling — the effect is repeatable and noticeable across the 30 positions of adjustment.

Ride Height Independent of Spring Preload

Ride height is set via the bottom mount rather than the spring platform, meaning full damper travel is retained at any ride height chosen. The tapered bottom mount locking collar locks the setting securely without requiring tools to recheck after every session.

The RH configuration is supplied with aluminium camber adjustable pillowball top mounts on the front (where available) and pillowball top mounts on the rear, or no rear top mounts depending on the application.

Kit Specifications

• Fitment: BMW 2 SERIES M235i F22 5-BOLT RWD REAR INTEGRATED (14-21)
• Spring Rate: 5.5/5.5KG.MM
• 30-Way Combined Damping Adjustment
• Front Top Mount: Pillowball Top Mount
• Rear Top Mount: Pillowball Top Mount
• Monotube Damper Design
• Full Ride Height Adjustment (via Bottom Mount)
• Adjustable Spring Platforms for Corner Weighting
• Tapered Bottom Mount Locking Collar
• Custom Spring Rates Available
• All Spare Parts Available
• 1 Year Manufacturer Warranty
