Audi B8 / C6 Platform 2.0 TDI CR EGR Race Pipe & Cooler Delete Kit

Audi B8 / C6 Platform 2.0 TDI CR EGR Race Pipe & Cooler Delete Kit

Darkside EGR (Exhaust Gas Recirculation) Delete Race Pipe & EGR Cooler Delete Kit for Audi B8 / C6 Platform 2.0 TDI CR Logitudinal engines. Our kit removes the factory EGR (Exhaust Gas Recirculation) Valve and includes hardware to remove and bypass the problematic EGR Cooler. Our race pipe directly replaces the EGR Valve and fits perfectly between the ASV (Anti Shudder Valve) and Inlet Manifold, retaining the ASV allows for the engine to remain smooth when switching off the ignition. The Darkside EGR Delete Race Pipe is CNC machined here in the UK from a single piece of Billet Aluminium unlike other kits on the market that are welded. This improves appearance and also strength. We have found that the kits from other suppliers can crack due to the strain of the boost pipework hanging from the ASV, we have designed our race pipe to overcome this problem. All of our race pipes also include two types of grub screws, the vented grub screw allows you to neatly run a vacuum line for custom boost gauge installs. We also supply a blanking grub screw that sits flush with the race pipe offering an air tight seal and aesthetic finish. Other kits on the market are known to supply a bulky brass fitting to be used for the boost takeoff instead. Because our CNC machined race pipe is almost exactly the same profile as the OE valve, stock hardware can be used.

Reduces inlet air temperatures = more power

Prevents further Intake and Turbo soot / carbon build up

Removes problematic EGR Cooler

Available in Brushed Aluminium or Anodised Black Finish

CNC Machined from a single piece of Billet Aluminium

Made in the UK

For more information on EGR Valves and Removal see here:

https://www.darksidedevelopments.co.uk/egr-removal-delete/

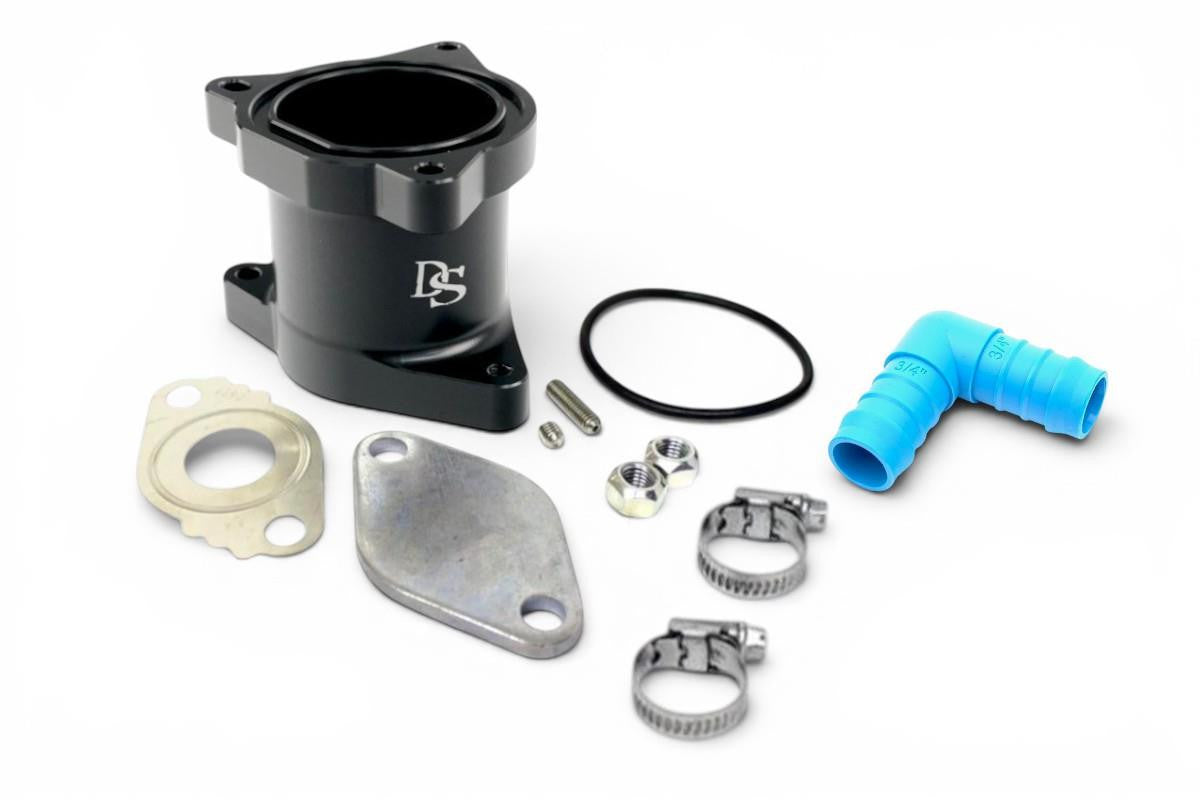

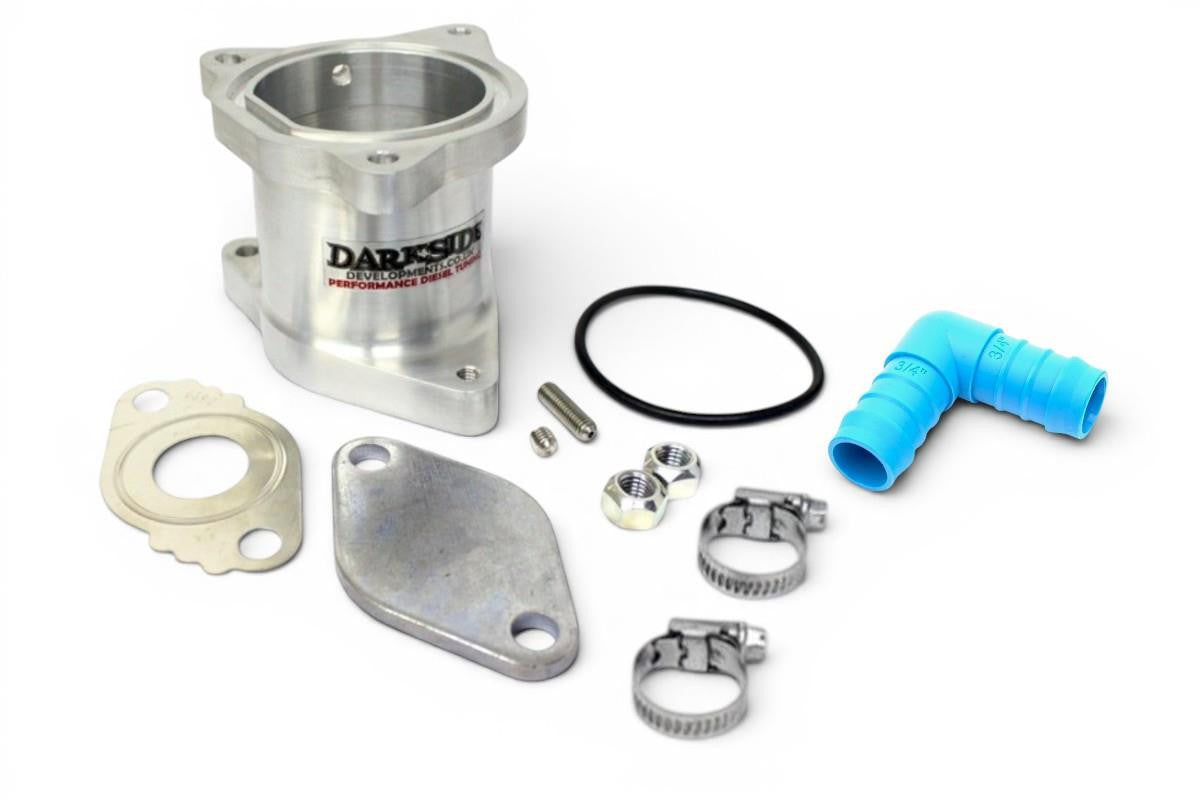

This Kit Consists of the Following:

1x Darkside CNC Machined EGR Delete / Race Pipe (Select finish from options above)
1x Nitrile O-Ring
1x Long Vented Grub Screw (for Boost Gauge Takeoff)
1x Short Grub Screw
2x M8 Nuts (for Turbo EGR Port)
1x Darkside Large Blanking Plate (for Turbo EGR Port)
1x Large EGR Gasket (for Turbo EGR Port)
2x M6 Socket Cap Bolts
2x Mikalor Clamps
1x 19mm 90 Degree Connector (For EGR Cooler Delete)

DPF Delete Downpipe for 2.0 TDi CR Audi A4 A5 Q5 B8:

https://www.darksidedevelopments.co.uk/products/dpf-delete-downpipe-for-2-0-tdi-cr-audi-a4-a5-q5-b8.html

This Kit will fit Vehicles with the following Engine Codes:

Audi A4 / Avant - CAGC (120) CAGB (136) CAGA (143) CMEA (143) CAHB (163) CAHA (170)

Audi A4 / S4 / Avant / quattro - CAGC (120) CAGB (136) CMEA (143) CAGA (143) CAHB (163) CAHA (170)

Audi A4 allroad quattro - CAGB (136) CAGA (143) CAHB (163) CAHA (170)

Audi A5 / S5 Cabriolet - CAHB (163) CAHA (170)

Audi A5 / S5 Coupe Sport - CAGB (136) CAGA (143) CMEA (143) CAHB (163) CAHA (170)

Audi A6 / Avant - CAGB (136) CAHB (163) CAHA (170)

Audi A6 / S6 / Avant / quattro - CAGB (136) CAHB (163) CAHA (170)

Audi Q5 - CAGB (136) CAGA (143) CAHB (163) CAHA (170)

Seat Exeo - CAGC (120) CAGA (143) CAHA (170)

Replaces Genuine EGR Valve Part Numbers:

038131501AN - 038131501 AN - 038 131 501 AN
038129637D - 038129637 D - 038 129 637 D
038131501S - 038131501 S - 038 131 501 S
038131501AF - 038131501 AF - 038 131 501 AF
03G128063R - 03G128063 R - 03G 128 063 R
03G128063B - 03G128063 B - 03G 128 063 B
03G128063K - 03G128063 K - 03G 128 063 K
03G128063L - 03G128063 L - 03G 128 063 L
03G128063R - 03G128063 R - 03G 128 063 R
03L131501C - 03L131501 C - 03L 131 501 C
03L131501D - 03L131501 D - 03L 131 501 D
03L131501E - 03L131501 E - 03L 131 501 E
03L131501G - 03L131501 G - 03L 131 501 G
03L131501K - 03L131501 K - 03L 131 501 K
03G131501J - 03G131501 J - 03G 131 501 J
03G131501Q - 03G131501 Q - 03G 131 501 Q
03G131501B - 03G131501 B - 03G 131 501 B
03G131501R - 03G131501 R - 03G 131 501 R

Replaces Genuine EGR Cooler Part Numbers:

03L131512AB - 03L131512 AB - 03L 131 512 AB
03L131512AC - 03L131512 AC - 03L 131 512 AC
03L131512AH - 03L131512 AH - 03L 131 512 AH
