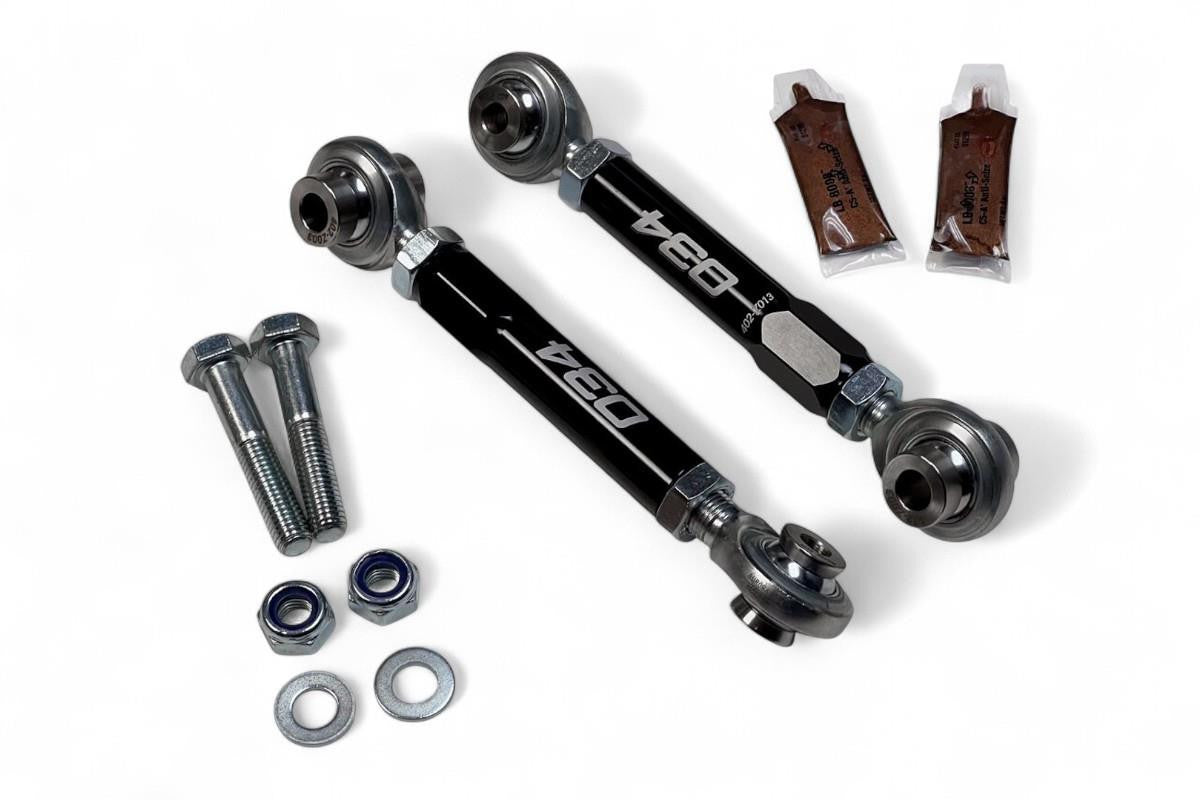

034Motorsport BMW E8x / E9x Series Motorsport Billet Adjustable Rear Sway Bar (ARB) End / Drop Links

034Motorsport Billet Adjustable Rear Sway Bar End Links for BMW 1 Series E8x / 3 Series E9x Ideal replacement for your original weak sway bar end links, ideal for when lowering your vehicle to achieve the correct preload on the sway bar. The adjustable sway bar links allow you to set the sway bar preload aswell as correcting any sway bar clearance issues you may encounter when lowering the vehicle.

CNC Machined 6061-T6 Aluminum End Link Bodies - Anodized Black for Durability

CNC Machined Stainless Steel End Link Spacers

Motorsport Quality Teflon-Lined Aurora Spherical Bearings

Spherical Design Eliminates Deflection and Ensures Proper Articulation

Fully Adjustable

Direct Drop-In Replacement for Factory End Links

Fully Rebuildable

Sold In Pairs

Sway Bar Preload:

When a sway bar is preloaded, it means that it is already twisted when the car is at rest, and it’s trying to roll the car to one side because of this. This will lead to asymmetric behavior and the car will favor tuning one way versus the other.

Preload is detectable when the car is at ride-height on a flat surface, and removal of an end link is difficult because the sway bar is already twisted and applying force on the bolt, or installing the end link is difficult because the bar needs to be twisted to insert the bolt through the hole in the sway bar. With equal-length non-adjustable sway bar end links, removing preload is not possible.

By utilizing 034Motorsport's adjustable end links, the lengths of each end link can be adjusted so that the end link can be easily installed at ride height without needing to twist the bar to get it to fit. Zero preload provides symmetrical handling in right and left turns

This Kit Consists of:

2x Adjustable Billet Sway Bar End Links
Fitting Kit

This Kit will fit the following Vehicles:

BMW 1M Coupe E82 2008-2013
BMW M3 Sedan E90 2006-2012
BMW M3 Coupe E92 2006-2012
BMW M3 Convertible E93 2006-2012
BMW 1 Series Coupe E82 2008-2013 all models
BMW 1 Series Convertible E88 2008-2013 - all models
BMW 3 Series Sedan E90 2006-2012 - all models
BMW 3 Series Touring E91 2006-2012 - all models
BMW 3 Series Coupe E92 2006-2012 all models
BMW 3 Series Convertible E93 2006-2012 - all models
