The Gen 4 Haldex pump replacement kit is the complete fix for a failed all-wheel-drive coupling pump on VAG Haldex-equipped cars. The Haldex coupling is what sends drive to the rear axle — when its pre-charge pump fails, the car quietly reverts to front-wheel drive, usually with an AWD or ESP warning light.

This is the genuine Borg Warner unit (Borg Warner build the Haldex system for VAG), supplied as a full service kit so the job can be done properly in one go rather than replacing the pump and reusing a clogged filter and old fluid.

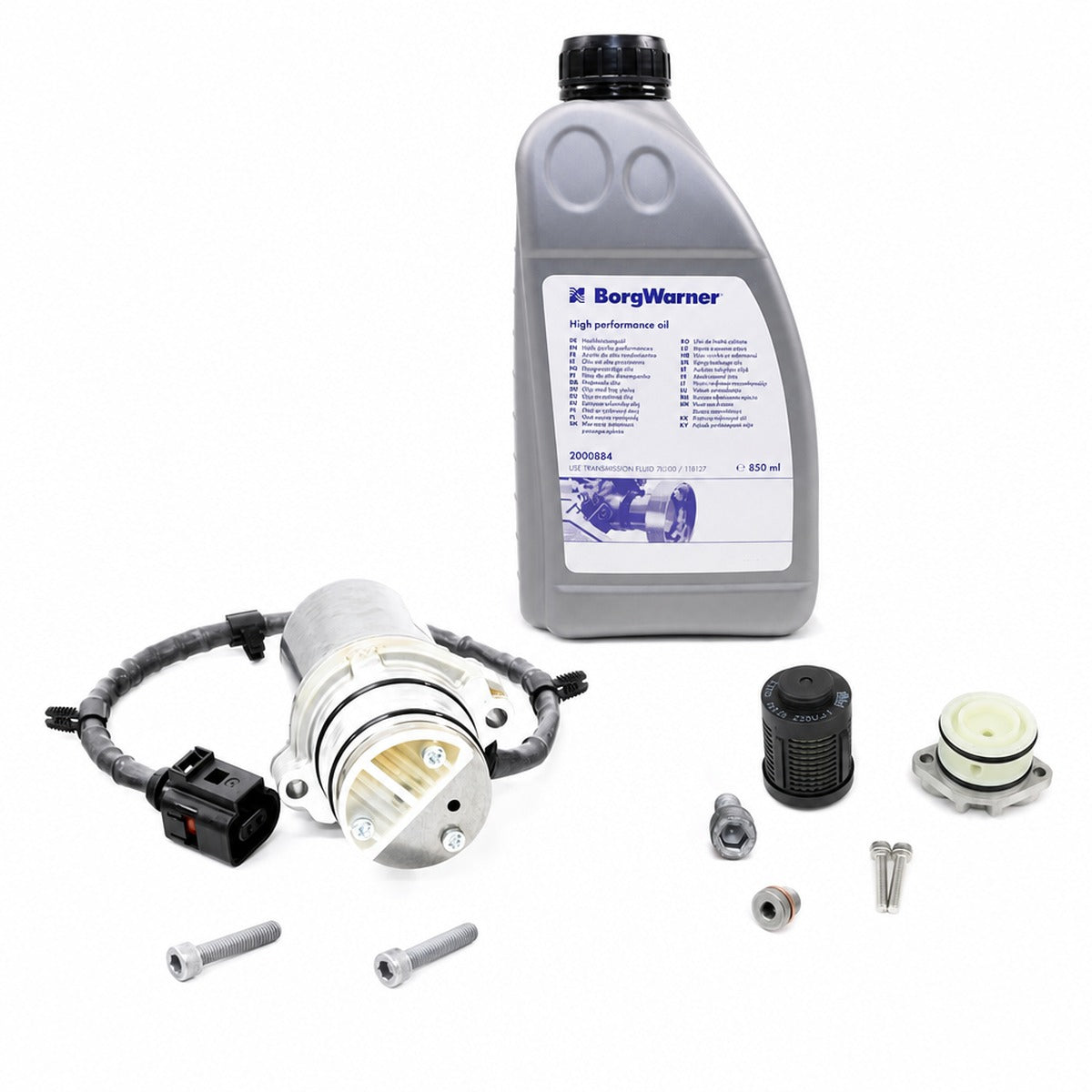

What's in the kit

• 1 × AWD Coupling Oil Pump — Borg Warner (DS119866)
• 1 × AWD Coupling Oil Filter — Borg Warner (DS2003085)
• 1 × AWD Coupling Fluid, 850ml — Borg Warner (DS2000884)
• 1 × AWD Coupling Drain Plug
• 1 × Differential Drain Plug — Genuine VW/Audi (N90281802)
• Mounting hardware

Symptoms of a failed Haldex pump

• AWD / 4Motion / quattro warning light on the dash
• Loss of rear-wheel drive — front wheels spinning under hard launches
• No traction from the rear in wet or loose conditions
• Haldex fault codes stored for the AWD control module

The most common cause is a blocked filter starving the pump, so we strongly recommend replacing the filter and fluid at the same time — which is exactly what this kit covers.

Fitment — Haldex Generation 4

Audi

• A3 / S3 / RS3 quattro (8P) — 2006–2013
• TT / TTS / TT RS quattro (8J) — 2006–2014
• Q3 / RS Q3 quattro (8U) — 2011–2018

Volkswagen

• Golf R MK6 (5K) — 2009–2013
• Golf MK6 4Motion — 2008–2013
• Tiguan MK1 4Motion — 2008–2016
• Passat B6 / B7 4Motion — 2008–2015
• Passat CC / CC 4Motion — 2008–2016
• Transporter T5 facelift 4Motion — 2009–2015
• Sharan MK2 4Motion — 2011–2015
• Caddy MK3 4Motion — 2009–2015

Skoda

• Octavia Scout / Octavia 4x4 — 2009–2015
• Superb 4x4 — 2009–2015
• Yeti 4x4 — 2009–2017

SEAT

• Altea Freetrack 4 — 2009–2015
• Alhambra 4Drive — 2011–2015

Fitment is by Haldex generation, not just by model — if you're unsure which generation your car runs, send us your VIN and we'll confirm before you order.

Part numbers

Manufacturer: DS119866, DS2003085, DS2000884
OE / superseded: 0AY598549A, 0AY525554, 0AY525554A, 0AY525554B, 0BR525554, 0BR525554A, 0BS525554, 0BS525554B, 0BY525554, 0BY525554A, 0BR525558, 09N525554A, 2K0525554A, N90281802, N90281803, N91082701, G060175A2

Availability

Special order item — 7–10 working days from order to dispatch.
