VAG 02M / 02Q 6 Speed Gearbox 4th Gear Input Shaft Support

VAG 02M / 02Q 6 Speed Gearbox 4th Gear Input Shaft Support

Name: VAG 02M / 02Q 6 Speed Gearbox 4th Gear Input Shaft Support
Brand: Darkside Developments
SKU: DSD1641
Price: 550.0 NZD
Availability: InStock

.price-ui--loading { display: block !important; opacity: 1 !important; }

$550.00

VAG 02M / 02Q 6 Speed Gearbox 4th Gear Input Shaft Support

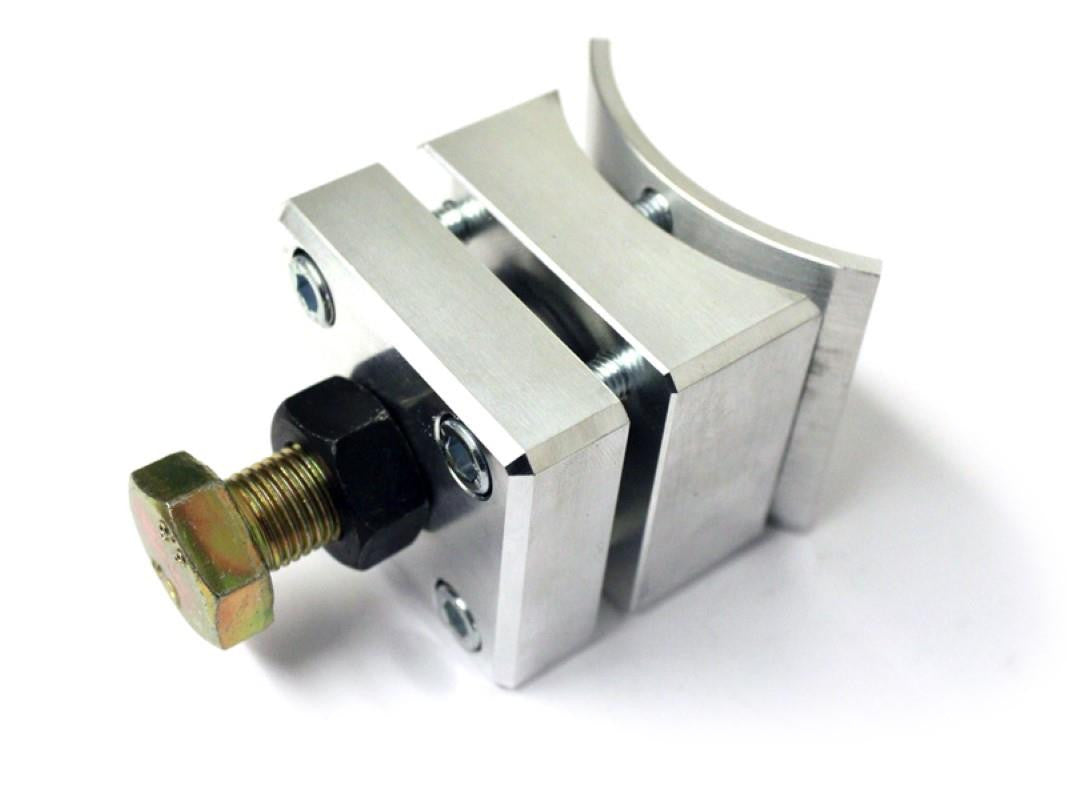

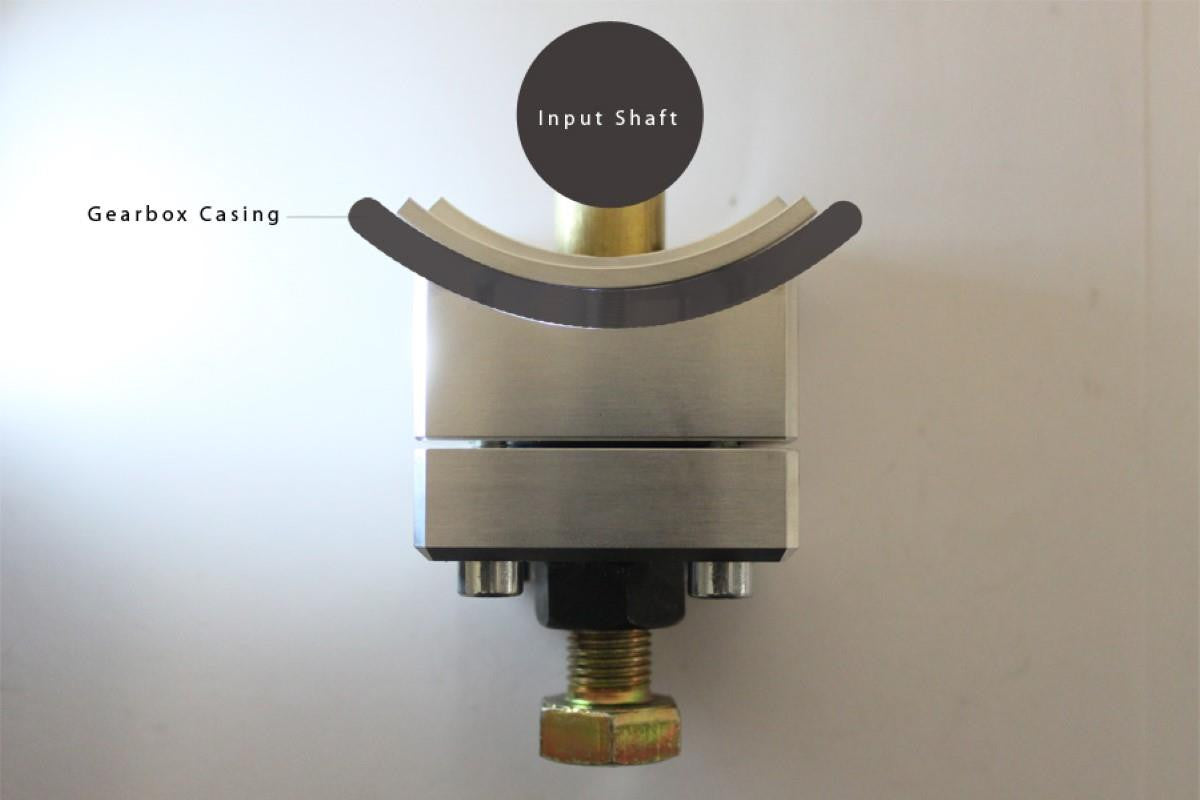

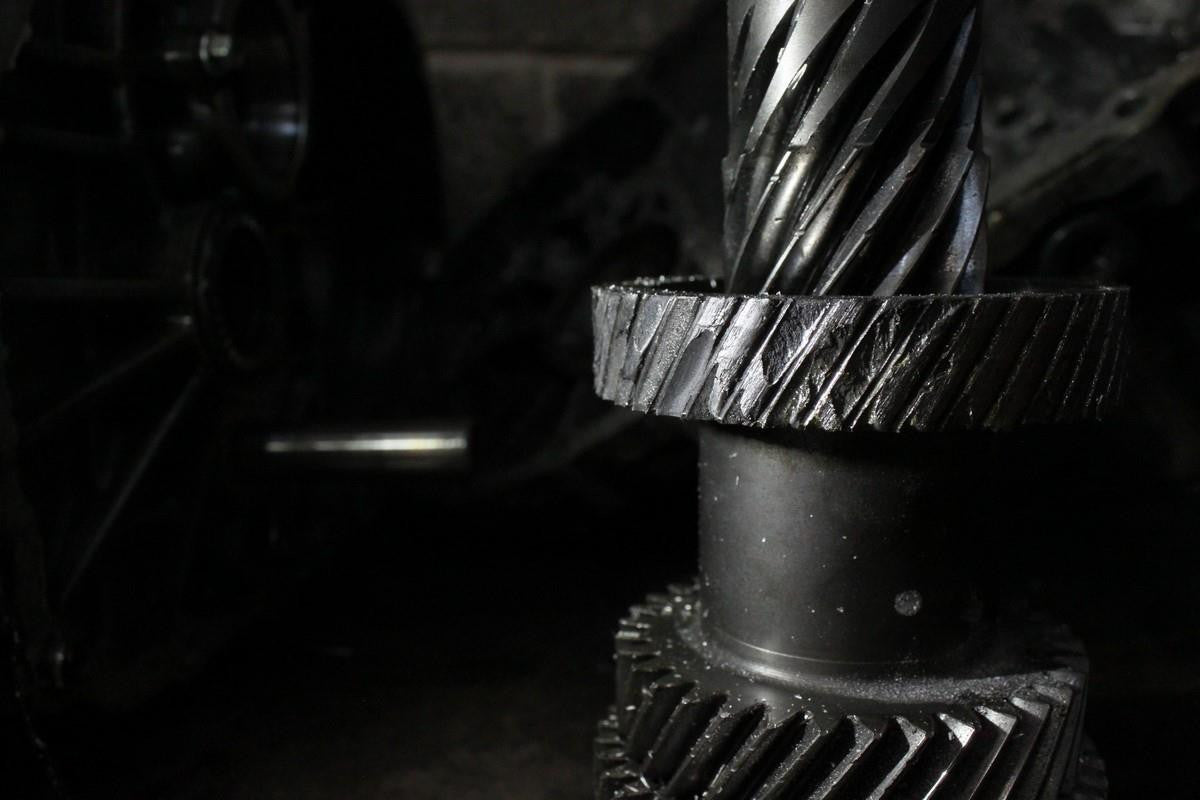

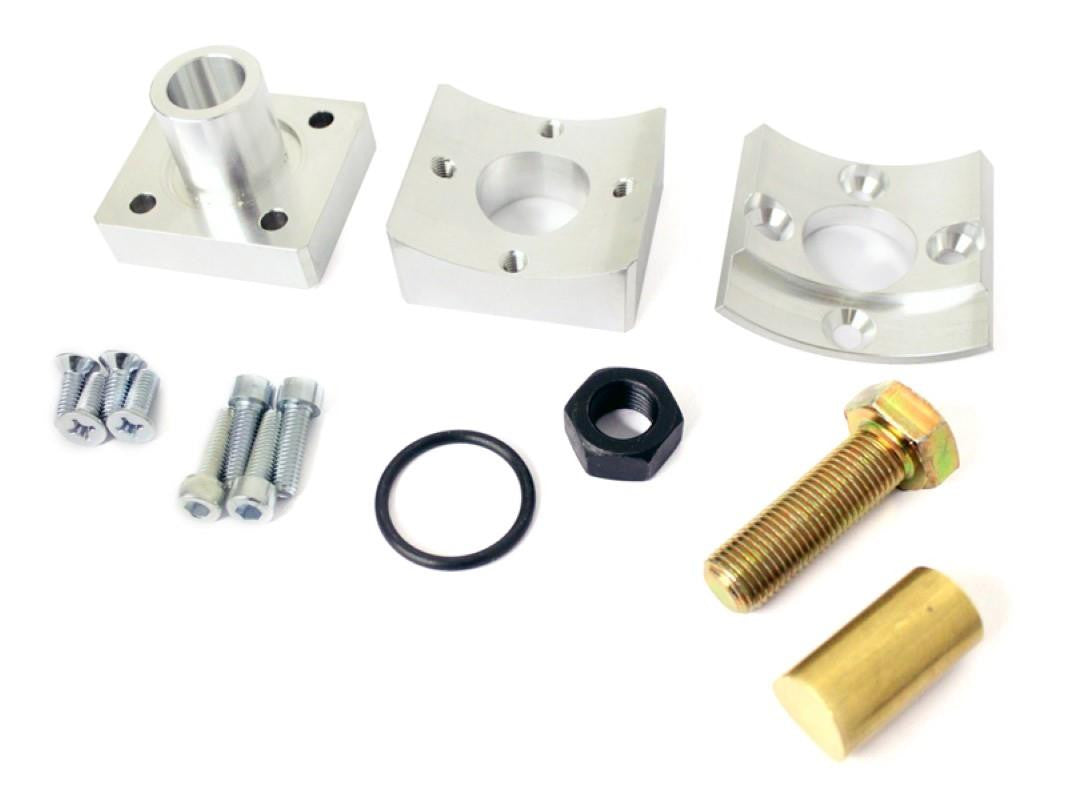

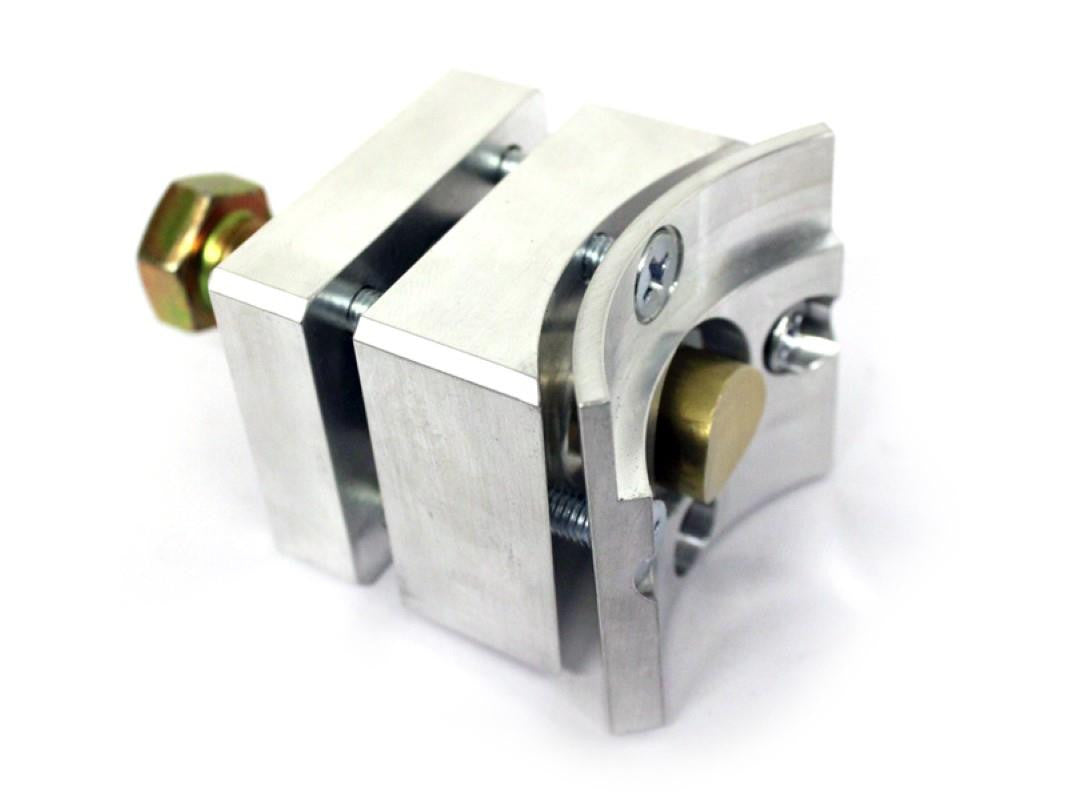

Darkside Custom Made 6 Speed 02M & 02Q Gearbox 4th Gear Input Shaft Support One of the biggest weaknesses of the 02M & 02Q Gearboxes is 4th Gear stripping teeth. This can become a major problem on vehicles with high torque figures. The issue is that the vibration and twisting force that goes through the input shaft and the shaft opposite, this pushes the gears apart. The result is that the 4th gear no longer engages correctly, this can result in the 4th gear breaking off or stripping the teeth. The support works by a brass support pushing against the input shaft to stop the parting of the two 4th gears. The preload of the support is adjustable and should be checked periodically. After experiencing this problem first hand with a few of our high powered diesels (including the Arosa) we highly recommend this modification for vehicles running 400ft/lbs+ (for petrol and diesel applications).

Made in the UK

Prevents the 4th Gear from Stripping

Custom CNC Machined

Reverse Sensor:

Please Note, when fitting this suport block, it will obstruct the reverse sensor plug. You will be required to use Spade Connectors instead of using the standard plug.

Fitment Data

This item will fit Vehicles with the following Engine Codes:

To fit the following Engine Codes with the 02M 6 Speed Gearbox (Engine Codes can be found on a sticker on the Cam Belt Cover or in the Boot):

VW Golf Mk4 - AJM, AUY (115) ASZ (130) ARL (150)

VW Bora Jetta Mk4 - AJM, AUY (115) ASZ (130) ARL (150)

VW Polo - ASZ, BLT (130)

VW Sharan - ANU (90) AUY (115) ASZ (130) BTB (150)

Audi A3 8L - AJM, AUY (115) ASZ (130) ARL (150)

Seat Leon 1M - AJM, AUY (115) ASZ (130) ARL (150)

Seat Ibiza Mk4 - ASZ, BLT (130) BPX, BUK 160

Seat Cordoba - ASZ, BLT (130)

Seat Toledo - ASZ, BLT (130)

Seat Alhambra - ANU 90 AUY (115) ASZ (130) BTB (150)

Skoda Octavia Mk1 - ASZ (130)

Skoda Fabia vRS - ASZ, BLT (130)

Ford Galaxy - ANU 90 AUY (115) ASZ (130) BTB (150)

To fit the following Engine Codes with the 02Q 6 Speed Gearbox:

VW Golf Mk5 - BKD, AZV (140) BMM (140) BMN (170)

VW Golf Plus - BKD, AZV (140) BMM (140) BMN (170)

VW Golf Mk6 - CFFA, CBAA (136) CBAB, CFFB (140) CFGB, CBBB (170)

VW Jetta - BKD, AZV (140) BMM (140) BMN (170)

VW Jetta - CBDA (136) CBDB, CJAA, CLCB, CFHC, CFFB (140) CEGA (170)

VW Passat - BWV (120) BVE (122) BMA (136) BKP, BMP (140) BMA, BUZ (163) BMR (170)

VW Passat - CBAB (140) CBAC (143) CBBB (170)

VW Passat CC - CBAA (136) CBAB CFFB (140) CLLA, CFGB, CBBB (170)

VW Touran - BKD, AZV (140) BMM (140) BMN (170)

VW Caddy - BMM (140)

VW Eos - BMM (140) CBAB, CFFB (140)

VW Scirocco - CFHC, CBDB (140)

VW Sharan - BVH (136) BRT (140)

VW Tiguan - CBAB, CFFB (140)

Audi A3 - BKD, AZV (140) BMM (140) BMN (170)

Audi A3 - CBAA (136) CBAB CLJA (140) CBBB (170)

Audi A6 - BRF, BNA (136) CAGB (136)

Audi TT - CBBB (170)

Seat Leon - BKD, AZV (140) BMM (140) BMN (170)

Seat Leon - CLCB, CFHC (140) CEGA, CFJA (170) CDLA

Seat Toledo - BKD, AZV (140) BMN (170) CEGA (170)

Seat Altea - BKD, AZV (140) BMM (140) BMN (170)

Seat Altea - CFHC CBDB (140) CEGA (170)

Skoda Octavia - BKD, AZV (140) BMM (140) BMN (170)

Skoda Octavia - CLCB, CFHC (140) CEGA (170)

Skoda Superb - CLJA, CFFB (140) CFGB, CBBB (170)

Skoda Yeti - CBDB (140) CEGA (170)

Estimated Fitting Costs

Darkside Developments offers professional in-house fitting for all products at our workshop located in Barnsley, South Yorkshire

With the gearbox removed from the vehicle

Estimated Labour Time (Hours)	Labour Cost
240
For more Information or to make a booking, please CONTACT US

Availability: ETA 1-2 weeks

Sourced from Darkside Developments UK. Shipped directly from the UK to New Zealand.
