Performance / Race Camshaft Kit for VW Transporter T5 / Touareg 7L 2.5 PD TDI

Performance / Race Camshaft Kit for VW Transporter T5 / Touareg 7L 2.5 PD TDI

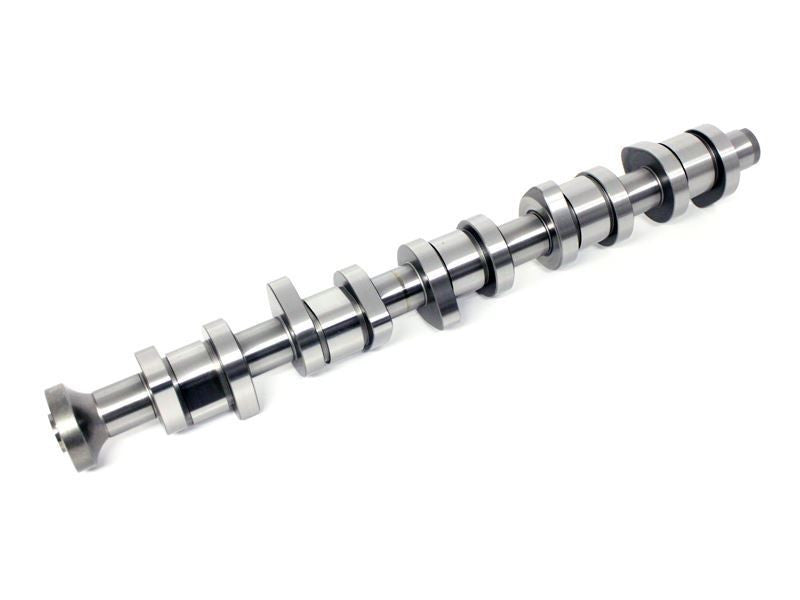

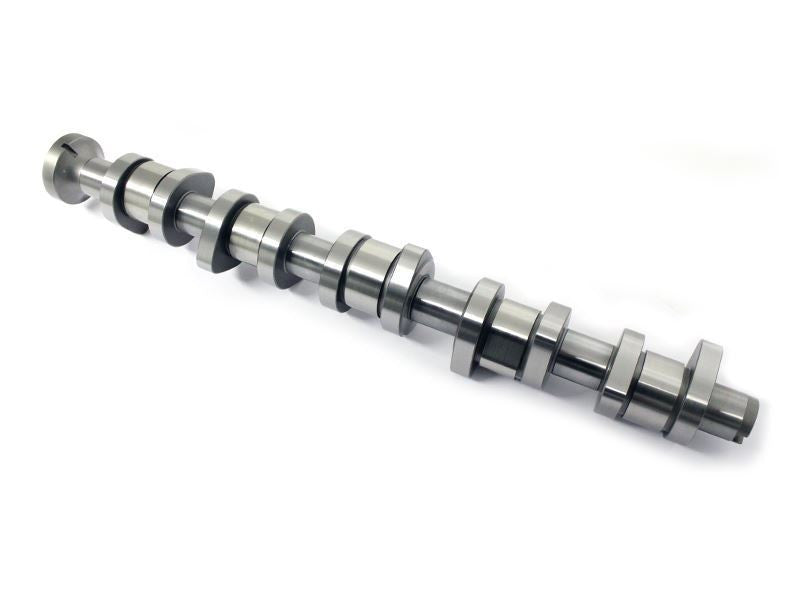

Darkside Performance / Race Camshaft Kit for VW Transporter T5 / Touareg 7L 2.5 PD TDI Diesel Engines Our performance race camshaft kit uses a Forged Steel Camshaft regrind to 272°, suitable for 2.5 PD TDI Engines found in the Volkswagen Transporter T5 and Touareg 7L, common engine codes include AXD, AXE, BNZ and BPC, please see full fitment data listed below. Although piston modification should not be necessary with this camshaft we recommend double checking all clearances prior to running the engine. We cannot account for all possible piston, block, head, head gasket combinations / changes.

We do not supply bolts with this kit, they are required for installation and can be purchased through the link below.

Intake Manifold Gaskets are also required when removing the intake to gain access to the rocker cover.

Forged Steel Camshaft (Regrind)

OE Quality Parts

Race Camshaft Specifications:

Duration: 272°
Peak timing: 112
Valve lift: 9.8
Lift at TDC: 0.7
Valve timing: 24/68 - 68/24

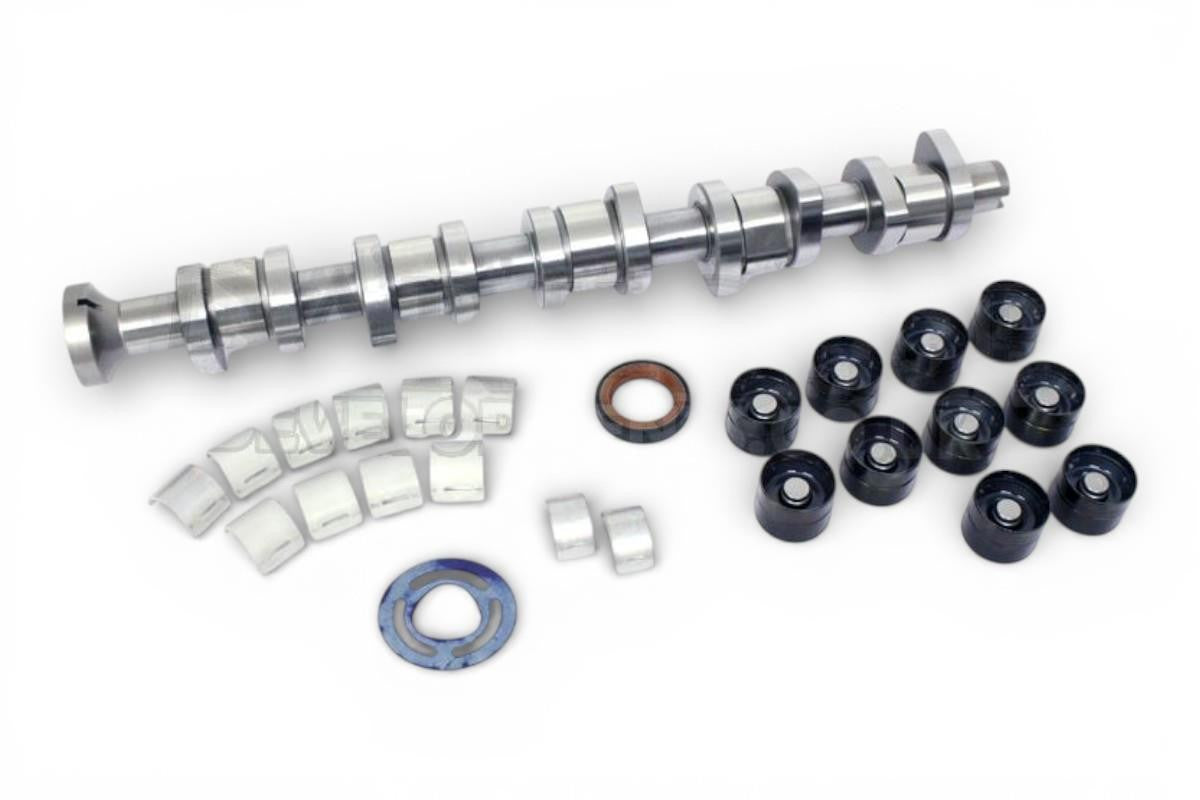

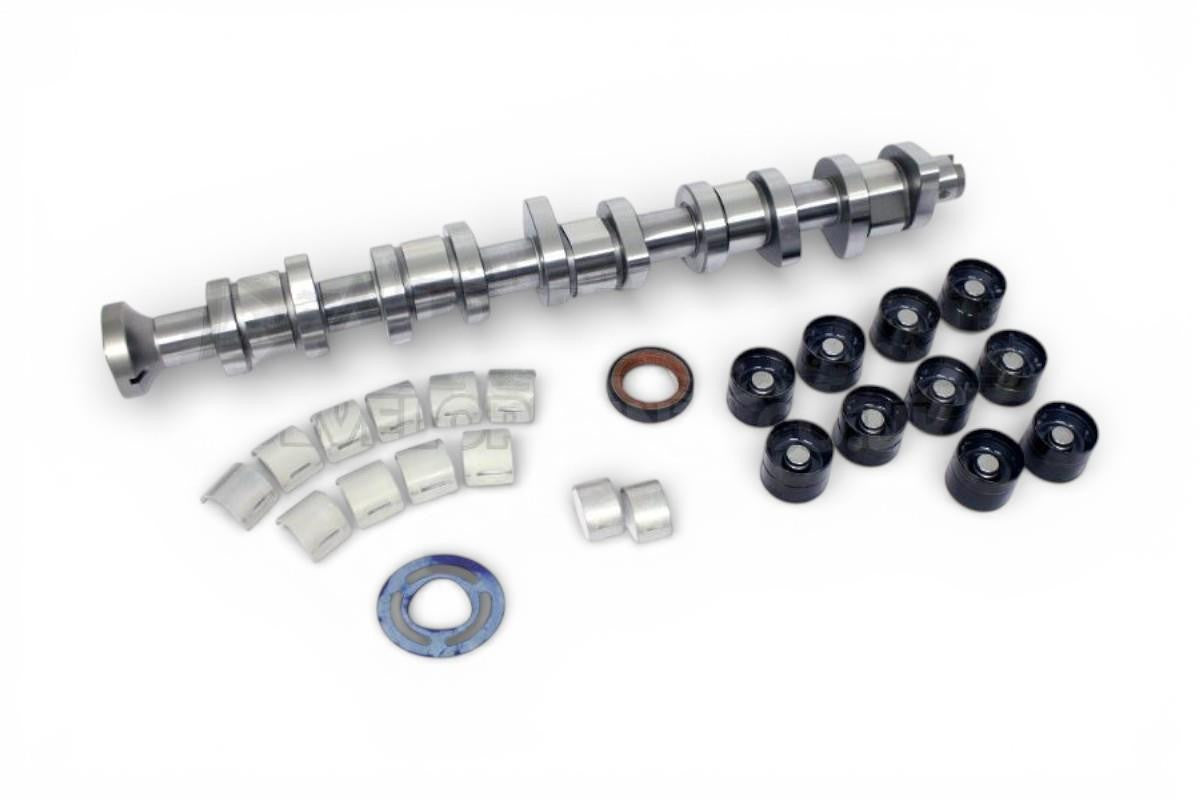

This Kit Consists of the following:

1x Performance / Race Forged Steel PD Camshaft
10x INA Black Top Lifters
Glyco Camshaft Shell Bearings
1x Tandem Pump Gasket
1x Camshaft Gear Diamond Washer
1x Camshaft End Seal

Complete Camshaft Bolt Kit for Transporter / Touareg 2.5 PD TDI

https://www.darksidedevelopments.co.uk/products/complete-2-5-pd-tdi-camshaft-bolt-kit.html

Inlet/Intake Manifold Gaskets for VW Transporter T5 / Touareg 2.5 TDI 5 Cylinder

https://www.darksidedevelopments.co.uk/products/inlet-manifold-gaskets-for-2-5-tdi-transporter-t5-touareg-5-cylinder.html

This Kit will fit Vehicles with the following Engine Codes:

VW Campmobile Type 2 / T2 - AXD (131) AXE (174)

VW Touareg - BLK (163) BAC (174)

VW Transporter Kombi - AXD (131) BLJ (163) AXE (174)

Replaces Genuine VAG Part Numbers:

BPD / BPE / BNZ / BPC Camshaft
070 109 101 Q - 070109101 Q - 070109101Q

AXD / AXE / BLK / BAC Camshaft
070 109 101 P - 070109101 P - 070109101P

Camshaft Lifters
038 109 309 C - 038109309 C - 038109309C
038 109 309 B - 038109309 B - 038109309B
038 109 309 A - 038109309 A - 038109309A

10 x Camshaft Bearings
038 103 673 A GLB - 038103673 A GLB - 038103673A GLB - 038103673AGLB
038 103 673 B GLB - 038103673 B GLB - 038103673B GLB - 038103673BGLB

2 x Camshaft Bearings
070 103 673 A GLB - 070103673 A GLB - 070103673A GLB - 070103673AGLB

Camshaft End Seal
070 103 407 - 070103407

Diamond Washer
070 109 421 A - 070109421 A - 070109421A

Tandem Pump Gasket
070 145 215 - 070145215
