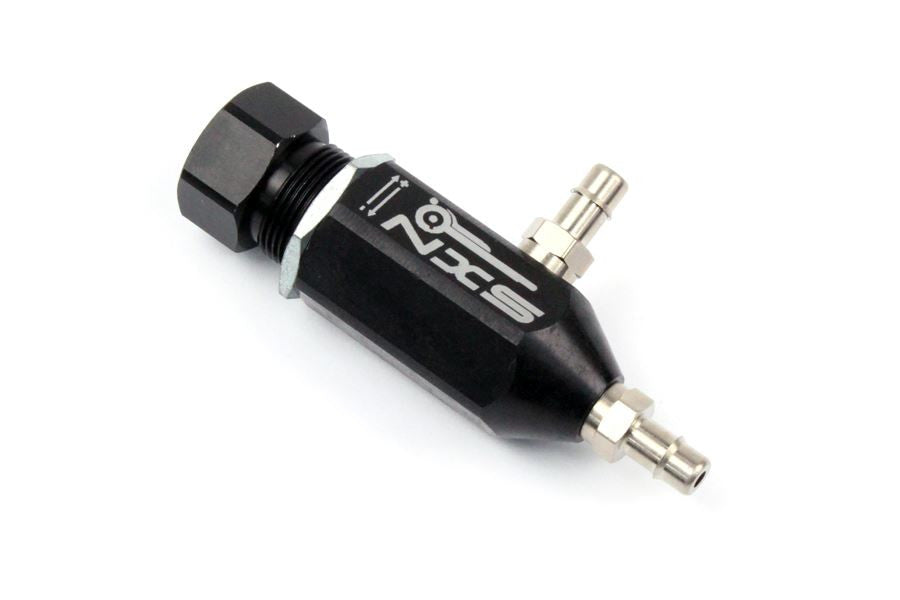

Motorsports Signature Series Manual Boost Controller

Motorsports Signature Series Manual Boost Controller

NXS Motorsports Signature Series Manual Boost Controller These units incorporate a stainless steel spring and stainless steel ball bearing, this combination allows your engine to realise gains of up to 30 psi while being able to fine tune your desired boost setting with ease. The hose barbs included with your controller utilise a captured o-ring that creates a perfect seal while fully encasing and protecting it It will never crack, break or rupture. The body of the boost controller is crafted from anodized Type-6061 aluminum and the hose barb fittings and locknut are constructed from electroless nickle-plated brass.

Ball & Spring design allows for super-fast response

Crafted from anodized Type-6061 aluminum

Electroless nickle-plated brass fittings

Available in anodised Black, Blue and Red

Stainless Steel Ball Bearing

5mm Barb Fitting

Captured O-Rings

Lifetime Warranty

Made in the U.S.

Easy to understand installation instructions included

Optional Fitting Kit Includes:

• 1.5m Vacuum Hose
• 8 x Cable Ties
• 1 Vacuum T-Piece (allows you to splice into existing connections)

PLEASE NOTE: These can be used for controlling the boost on WASTEGATE TURBOCHARGERS ONLY. These will NOT control the boost on VNT Vaccum Turbochargers.

These can however be used as a Dawes Valve / Device on VNT Turbochargers but is usally a cover up for bad mapping and boost spikes
