02J-B 5 Speed to 02Q 6 Speed Gearbox Conversion for VAG Golf Mk5 / Mk6 Platform TDI Vehicles

Complete 02Q 6 Speed Manual Gearbox Conversion Kit for VAG Mk5 / Mk6 Golf Platform TDI vehicles with 5 Speed 02J-B Transmissions. This Gearbox Kit consists of fully working used tested Genuine VW / OEM parts required when converting the 02J-B 5 Speed to an 02Q 6 Speed Gearbox. *The price displayed includes DHL Express Shipping to the USA and Canada. Extra shipping costs may apply to all customers outside of the USA and Canada - Please contact us* A popular upgrade on the MK5 / Mk6 Platform Golf / Jetta / Passat / Caddy / A3 / Leon vehicles with the weaker 5 Speed 02J-B Transmissions. Our conversion kit will also fit newer models with start / stop, however on these models the start / stop function will no longer be active and require deleting from the software. This conversion can also be carried out on 02S 6 Speed Vehicles as the 02Q is still the superior option, see compatible vehicles in our Fitment Data.

Genuine / OEM Parts

5 to 6 Speed Conversion

Popular upgrade on the Mk5 / MK6 Golf and MK3 / MK4 Caddy

Contains all parts required

Choice of Clutch and Flywheel Setups

Used Parts:

This kit consists of Used Genuine Parts, including the gearbox and driveshafts. All parts are fully checked and tested prior to shipping, the driveshaft CV Joints and boots are also checked and rebuilt with Brand New parts if needed.

Clutch and Flywheel Options:

"None"

No clutch and flywheel are supplied, just the gearbox conversion kit.

"Sachs Clutch and Dual Mass Flywheel"

New stock replacement Sachs 02Q Dual Mass Flywheel and Clutch Kit, good for around 330lbs/ft of torque.

"Valeo Clutch and Single Mass Flywheel"

New replacement Valeo Single Mass Flywheel and Clutch kit, stronger than the Dual Mass Flywheel, good for around 330lbs/ft of torque.

"SRE Clutch and Single Mass Flywheel" (Recommended for Race Applications)

Darkside Billet Single Mass Flywheel (SMF) & Sachs SRE Clutch Kit with Organic Disc, capable of supporting 400Ft/Lbs / 540Nm+

As with most of the Single Mass Flywheel Kits, there will be some noise at low RPMs and at idle. This is completely normal and will not damage your gearbox or engine.

"Sachs SRE Clutch and Dual Mass Flywheel (Recommended)"

For those who require a kit suited to daily driving, the kit with an Organic disc is the strongest setup available with a stock driving style, capable of holding 407+Ft/Ib of torque.

02Q Gearbox Ratios:

There are 2 main groups of subcode with the same ratios (there are 4 groups in total, but the other 2 have almost the same ratios as the 5 speed so we have left them out).

They are all based on the 02Q 6 Speed Box, which is an uprated version of the 02M found in the Mk4 Golfs. The difference being the lack of a speed sensor and strengthening to the casing on the 02Q.


02Q 6 Speed Group 1

1st 3.769 - 2nd 2.087 - 3rd 1.324 - 4th 0.919 - 5th 0.902 - 6th 0.757 - Rev 1.643 - FD1 3.684 - FD2 2.917


02Q 6 Speed Group 2

1st 3.769 - 2nd 2.087 - 3rd 1.324 - 4th 0.977 - 5th 0.975 - 6th 0.814 - Rev 1.643 - FD1 3.45 - FD2 2.76

The 02Q Uses 2 final drives. FD1 for 1st - 4th, FD2 for 5th & 6th.


02J 5 Speed - GQQ, JCR - For comparison

1st 3.778 - 2nd 2.063 - 3rd 1.348 - 4th 0.967 - 5th 0.744 FD 3.389


With the Group 1 ratios, you are looking at about 100MPH in 6th @ 3000RPM with 205/55/R16 Tyres. The Group 2 would be @ 98MPH.
This compares to 88MPH in 5th on the 5 Speed, a very nice increase!

To put it another way, at 75MPH the BRM 5 Speed is @ 2555RPM, whereas the 6 speed is @ 2237RPM (318RPM Decrease), with 205/55/R16 Tyres.

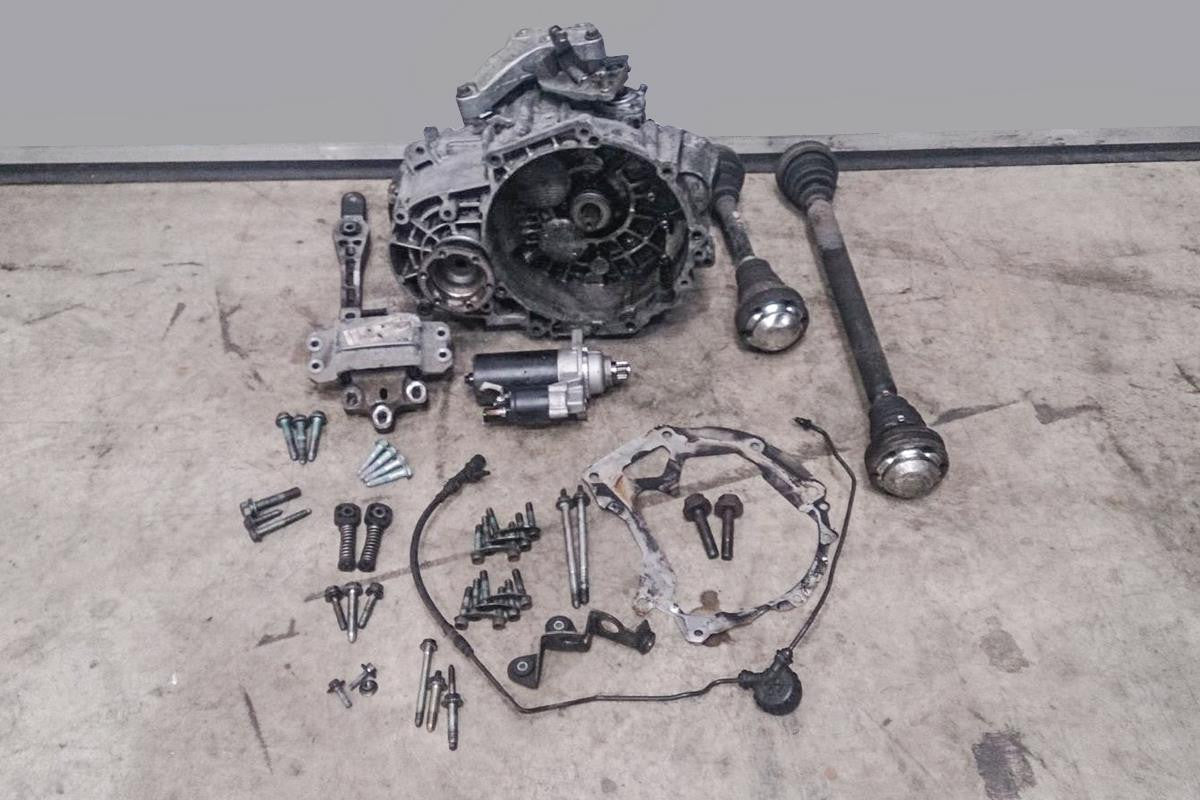

This Kit Consists of:

1x Used Genuine 02Q 6 Speed Gearbox (Group 1 or 2*)
1x Used Long 02Q Driveshaft
1x Used Short 02Q Driveshaft
1x Used Dogbone Mount
1x Gearbox Mount (Mounted to Gearbox)
1x Gearbox Mount
1x Genuine Bosch 02Q Starter Motor
1x Genuine Dust Tin
1x Used Shifter / Cables / Gaiter / Knob / Cable Mount / End Links
1x Clutch Line
All Mounting Hardware Required (New is supplied if needed)

We can also supply and fit a Quaife LSD if required:

https://www.darksidedevelopments.co.uk/products/quaife-02q-2wd-atb-helical-limited-slip-diff-lsd-qdf16r.html

You will also require 2.3L of Gearbox Oil as these boxes are supplied dry, we have OE Oil Listed below:

https://www.darksidedevelopments.co.uk/products/OE-vw-gearbox-case-oil-1-litre-g-052-527-a2-g052527a2.html

This Kit will fit Vehicles with the following Engine Codes:

Audi A3 / S3 - CAYB (90) CAYC (105) BXE (105) BLS (105) BKC (105)

Audi A3 Cabriolet - CAYC (105) BLS (105)

Seat Altea - CAYB (90) BXF (90) CAYC (105) BXE (105) BLS (105) BKC (105) BJB (105)

Seat Leon - CAYB (90) BXF (90) CAYC (105) BXE (105) BLS (105) BKC (105)

Seat Toledo - BXE (105) BLS (105) BKC (105) BJB (105)

Skoda Octavia - CAYC (105) BXE (105) BLS (105) BKC (105) BJB (105) CLCB (140)

Skoda Superb - BXE (105) BLS (105)

Skoda Yeti - CLCA (110) CFHF (110) CFHA (110) CLCB (140) CFHC (140)

VW Bora - BRM (103) BXE (105) BKC (105)

VW Caddy - BLS (105) BJB (105) CLCA (110)

VW Golf - CAYB (90) BXJ (90) BXF (90) BRU (90) CAYC (105) BXE (105) BLS (105) BKC (105) CLCA (110) CBDC (110)

VW Golf Plus - CAYB (90) BXJ (90) BXF (90) BRU (90) CAYC (105) BXE (105) BLS (105) BKC (105) CLCA (110) CBDC (110)

VW Jetta - CAYB (90) BRM (103) CAYC (105) BXE (105) BLS (105) BKC (105) CLCA (110)

VW Jetta Variant - BXE (105) CLCA (110)

VW Passat / Variant - BXE (105) BLS (105) BKC (105) CBDC (110)

VW Touran - CAYB (90) BXJ (90) BXF (90) BRU (90) AVQ (100) CAYC (105) BXE (105) BLS (105) BKC (105) CLCA (110)

VW Vento - BRM (103) BXE (105) BKC (105) CLCA (110)

VW Vento Variant - BXE (105) CLCA (110)
